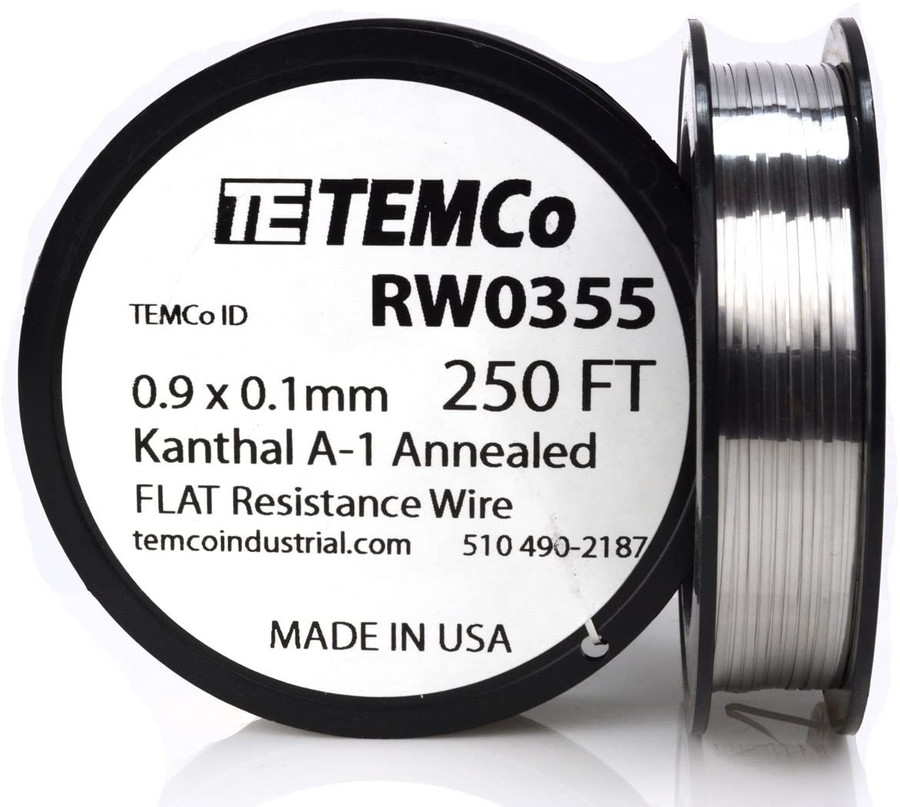

Kanthal A-1 is a ferritic iron-chromium-aluminium alloy (FeCrAl alloy) rated for use at temperatures up to 1400°C (2550°F). The alloy has high resistivity and great oxidation resistance. It is typically used in furnace applications, such as electrical heating elements in high-temperature furnaces for heat treatment, glass, steel, ceramics, and electronics industries.
Features
- Computerized spooling by weight.
- Clean production environment houses spooling process.
- Proudly Made in the U.S.A. ZERO wire imports policy.
- Perfectly tensioned. Zero elongation, scratches, or other flaws.
- ZERO contaminants. Hands-off feeding eliminates skin salts & oils.
Which resistance wire is right for you?
| Specification | Nichrome 60 | Nichrome 80 | Kanthal A-1 |
| Maximum Operating Temperature | 1150°C (2100°F) | 1180°C (2150°F) | 1400°C (2550°F) |
| Common Applications | Tubular heating elements as suspended coils | Furnace applications | |
| Advantages |
|
| |
Resistance
The more wire you have, the greater the resistance. The following factors affect resistance.
Diameter: The thinner the wire (higher gauge number), the higher the resistance per foot. The thicker the wire (lower gauge number), the lower the resistance.
Length: The longer the wire, the higher the overall resistance. The shorter the wire, the lower the overall resistance.
Temperature: The more heat the wire generates, the more resistance it will create.
Current: Determine the current (amperage) you need to heat your wire.
| Wire Size (Thickness x Width) | Resistance (Ohms / ft at 68°F) | Feet Per Lb. |
| 0.4 x 0.1 mm | 11.4 | 5618 |
| 0.5 x 0.1 mm | 9.2 | 4444 |
| 0.6 x 0.1 mm | 7.68 | 3690 |
| 0.7 x 0.1 mm | 6.58 | 3236 |
| 0.8 x 0.1 mm | 5.76 | 2809 |
| 0.9 x 0.1 mm | 5.12 | 2481 |
- Country of Manufacture:
- United States
- Average Wire Diameter in:
- 0.0354
- Average Wire Diameter mm:
- 0.89916
- Feet per Pound:
- 2481
- Heat Treatment:
- Annealed (soft)
- Maximum Operating Temperature:
- 1400°C (2550°F)
- Density:
- 0.256 lbs/cubic inch
- Specific Heat Capacity:
- 0.11 Btu/lb °F
- Alloy:
- Kanthal A1
- Wire Gauge AWG:
- 0.9 x 0.1 mm
- Amount of Wire:
- 250 ft
- Wire Shape:
- Flat Ribbon
- Melting Temperature:
- 1500°C (2732°F)
- Resistance:
- 5.12
- Specific Gravity:
- NA
- Thermal Expansion:
- NA
