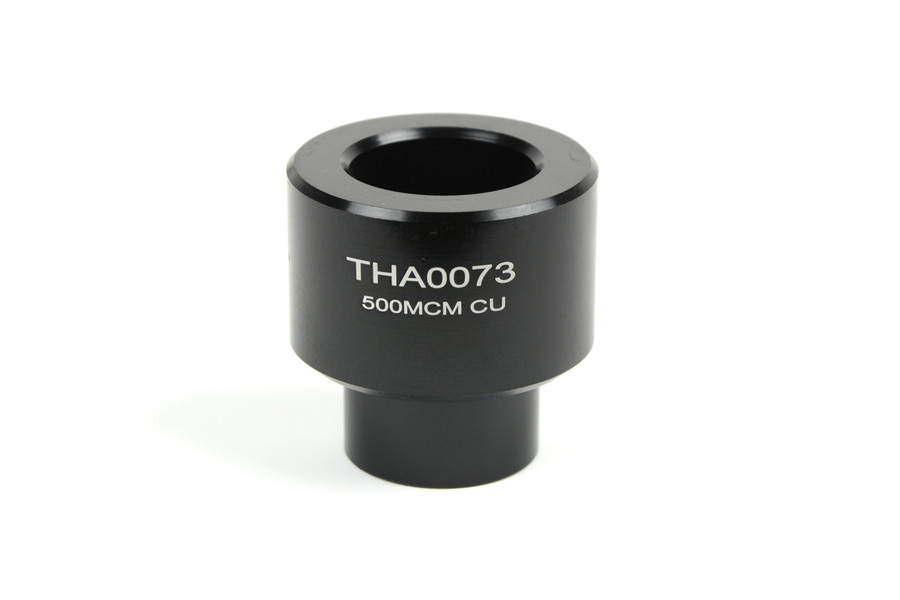

TEMCo Rotary Cable Stripper Bushing for 500MCM CU THHN / XHHW Cable
- Designed for use with the TEMCo TH0410 Cable stripper kit
- This bushing is for 500MCM copper wire with THHX or XHHW insulation.
- Each bushing has adjustable depth for changing insulation thickness.
- Compatible with Dewalt, Greenlee and Milwaukee Brand cable Rotary stripper tools.
| Wire Size | TEMCo Part Number | Max Wire OD (Inch) | Max Wire OD (mm) | Dewalt Part # / Label | Greenlee part # / Label |
| 6awg CU/AL | THA055 | 0.2756 | 7 | N/A | 10-27522 / EF-1 |
| 4awg CU/AL | THA056 | 0.3307 | 8.4 | N/A | 10-32530 / F-1 |
| 3awg CU | THA057 | 0.3504 | 8.9 | N/A | 10-35030 / E-1 |
| 2awg CU/AL | THA058 | 0.3780 | 9.6 | N/A | 10-37530 / EF-2 |
| 1awg CU | THA059 | 0.4528 | 11.5 | DCE1511 / B1 | 10-45040 / R-3 |
| 1/0 CU / 2/0 AL | THA060 | 0.5236 | 13.3 | DCE1513 / B3 | 10-52540 / EF-4 |
| 2/0 CU / 3/0 AL | THA061 | 0.5512 | 14 | DCE1514 / B4 | 10-55040 / E-3 |
| 3/0 CU | THA062 | 0.5866 | 14.9 | DCE1515 / B5 | 10-57540 / F-3 |
| 3/0 CU / 4/0 AL | THA063 | 0.6142 | 15.6 | DCE1516 / B6 | 10-60040 / E-4 |
| 4/0 CU | THA064 | 0.6496 | 16.5 | DCE1517 / B7 | 10-65040 / RB-1 |
| 4/0-250MCM CU / 250MCM AL | THA065 | 0.6811 | 17.3 | DCE1518 / B8 | 10-67540 / E-5 |
| 250MCM CU / 300MCM AL | THA066 | 0.7126 | 18.1 | DCE1519 / B9 | 10-72560 / R-8 |
| 250-300MCM CU / 300MCM AL | THA067 | 0.7441 | 18.9 | DCE15110 / B10 | 10-75050 / EF-5 |
| 300MCM CU / 350MCM AL | THA068 | 0.7756 | 19.7 | DCE15111 / B11 | 11-77550 / B-1 |
| 350MCM CU / 400MCM AL | THA069 | 0.8071 | 20.5 | DCE15112 / B12 | 11-80050 / AF-1 |
| 350-400MCM CU / 400MCM AL | THA070 | 0.8386 | 21.3 | DCE15113 / B13 | 11-85050 / A-1 |
| 350-400MCM CU | THA071 | 0.8701 | 22.1 | DCE15114 / B14 | 11-87550 / E-6 |
| 500MCM AL | THA072 | 0.9016 | 22.9 | DCE15115 / B15 | 11-90075 / R-11 |
| 500MCM CU | THA073 | 0.9331 | 23.7 | DCE15116 / B16 | 11-92550 / F-6 |
| 500MCM CU / 600MCM AL | THA074 | 0.9646 | 24.5 | DCE15117 / B17 | 11-97560 / T-25 |
| 500-600MCM CU / 600MCM AL | THA075 | 0.9961 | 25.3 | DCE15118 / B18 | 11-100060 / T-27 |
| 600MCM CU | THA076 | 1.0276 | 26.1 | DCE15119 / B19 | 11-102560 / F-7 |
| 600MCM CU / 700MCM AL | THA077 | 1.0591 | 26.9 | DCE15120 / B20 | 11-105060 / E-8 |
| 600-700MCM CU / 750MCM AL | THA078 | 1.0906 | 27.7 | DCE15121 / B21 | 11-110060 / F-9 |
| 700MCM CU | THA079 | 1.1220 | 28.5 | DCE15122 / B22 | 11-115060 / RB-3 |
| 750MCM CU / 900MCM AL | THA080 | 1.1850 | 30.1 | DCE15124 / B24 | 11-117560 / E-9 |
