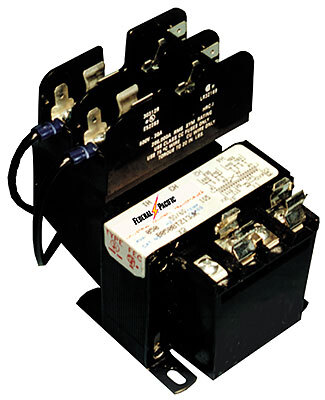

Features
- Epoxy encapsulated coils
- Secondary fuse clips where applicable
- Optional primary fusing
- Molded terminal barriers
- 10-32 screw terminals
- Molded-in screws
- Phil-slot screws
- Laminations of the finest silicon steel minimize core losses and increase performance and efficiency
- UL 506 Listed
- CSA Certified
- Insulation materials of the highest rating available for the temperature class
- Mounting brackets are heavy gauge steel to add strength to core construction and provide stable mounting
- Slotted mounting feet permit easy installation
- Attractive black finish; easy to read nameplate with complete rating data and wiring diagram
⚠️ This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
- Bil Rating Kv:
- NA
- Temperature Rise:
- 55
- Insulation System:
- 105
- Manufacturer:
- Federal Pacific
- Enclosure Rating:
- Open
- Input Voltage:
- 240x480
- Output Voltage:
- 24
- Enclosure Material:
- N/A
- UL Listed:
- YES
- CSA Approved:
- YES
- Transformer Type:
- Control - Encapsulated
- Phase:
- Single
- Kva:
- 0.05
- Winding Material:
- Copper
- Primary Configuration:
- Two Winding
- Secondary Configuration:
- One Winding
- Reverse Connectable:
- YES
- Electrostatically Shielded:
- NO
- Construction Type:
- Open - Cast or Encapsulated Core & Coil
- Cooling:
- Air/Dry
- Connection Type:
- Screw terminals
- Frequency Hz:
- 50/60
- K Rating:
- 1
- Mounting Type:
- Base/panel
- Sound Level db:
- Less than 40
- Agency Approvals:
- NA
- Manufacturer Part Number:
- NA
