NOTE: Does not ship with hydraulic oil. You will need 2.11 gallon of AW-15 or AW-32 hydraulic oil.

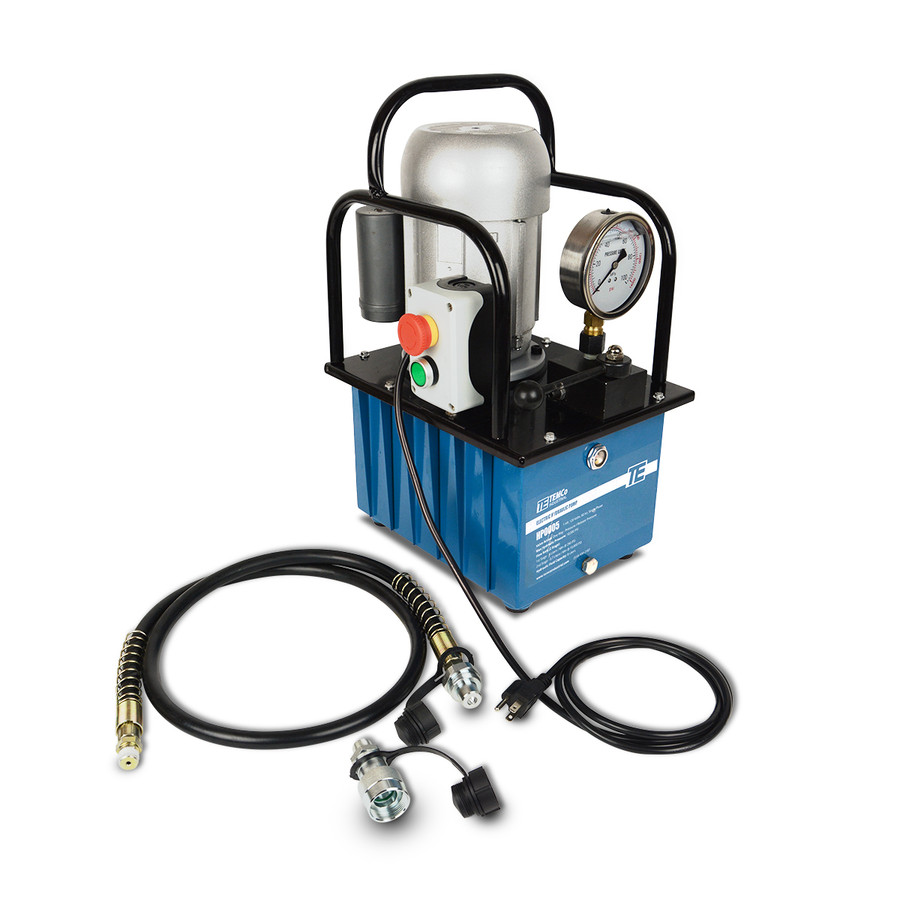

Type: Electric Hydraulic Pump
Action: Single acting
Control: Push Button Stop/ Start, Lever Valve Action - Control lever forward: Pump into hose A / Control lever backward: Returns to reservoir on hose A
Includes Hydraulic Hose: 5ft - Quick Hydraulic Coupler w/ Dust Cap
Oil Capacity: 488 Cubic Inches (8 liters/8000cc) 2.11 Gallons
Low Pressure Stage psi: 290
High Pressure Stage psi: 10,000
Low Pressure Stage Flow Rate: 1.3 Gallons per minute
High Pressure Stage Flow Rate: 0.18 Gallons per minute
Max Output Hydraulic Pressure: 10,000 PSI (adjustable range is 725-10,000 PSI)
Connector Type: 3/8" NPT ISO 14540 quick hydraulic coupler with dust cap
Voltage: 120
HP: 1
Warranty: 5 Years
Applications Include: Shop presses, Heavy Machinery Rigging and Moving, Auto Repair, Oil Rigging, Machine maintenance
Coupler Specifications
Standard: ISO 14540
Thread (between male poppet end and coupling ring): M30 x 1.5 mm
Thread: 3/8" NPT
Occlusion Type: Poppet
Rated Pressure: 10,000 psi
Rated Flow: 6 GPM
Sealing Material: Nitrile Rubber (Buna-N, NBR)
⚠️ This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
- Pump Type:
- Electric Hydraulic Pump
- Action:
- Single acting
- Control:
- Push Button Stop/ Start
- Includes Hydraulic Hose:
- 5ft - Quick Hydraulic Coupler w/ Dust Cap
- Oil Capacity:
- 488 Cubic Inches (8 liters/8000cc) 2.11 Gallons
- Low Pressure Stage psi:
- 290
- High Pressure Stage psi:
- 10,000
- Low Pressure Stage Flow Rate:
- 1.3 Gallons per minute
- High Pressure Stage Flow Rate:
- 0.18 Gallons per minute
- Max Output Hydraulic Pressure:
- 10,000 PSI (adjustable range is 725-10,000 PSI)
- Connector Type:
- 3/8" NPT ISO 14540 quick hydraulic coupler with dust cap
- Voltage:
- 120
