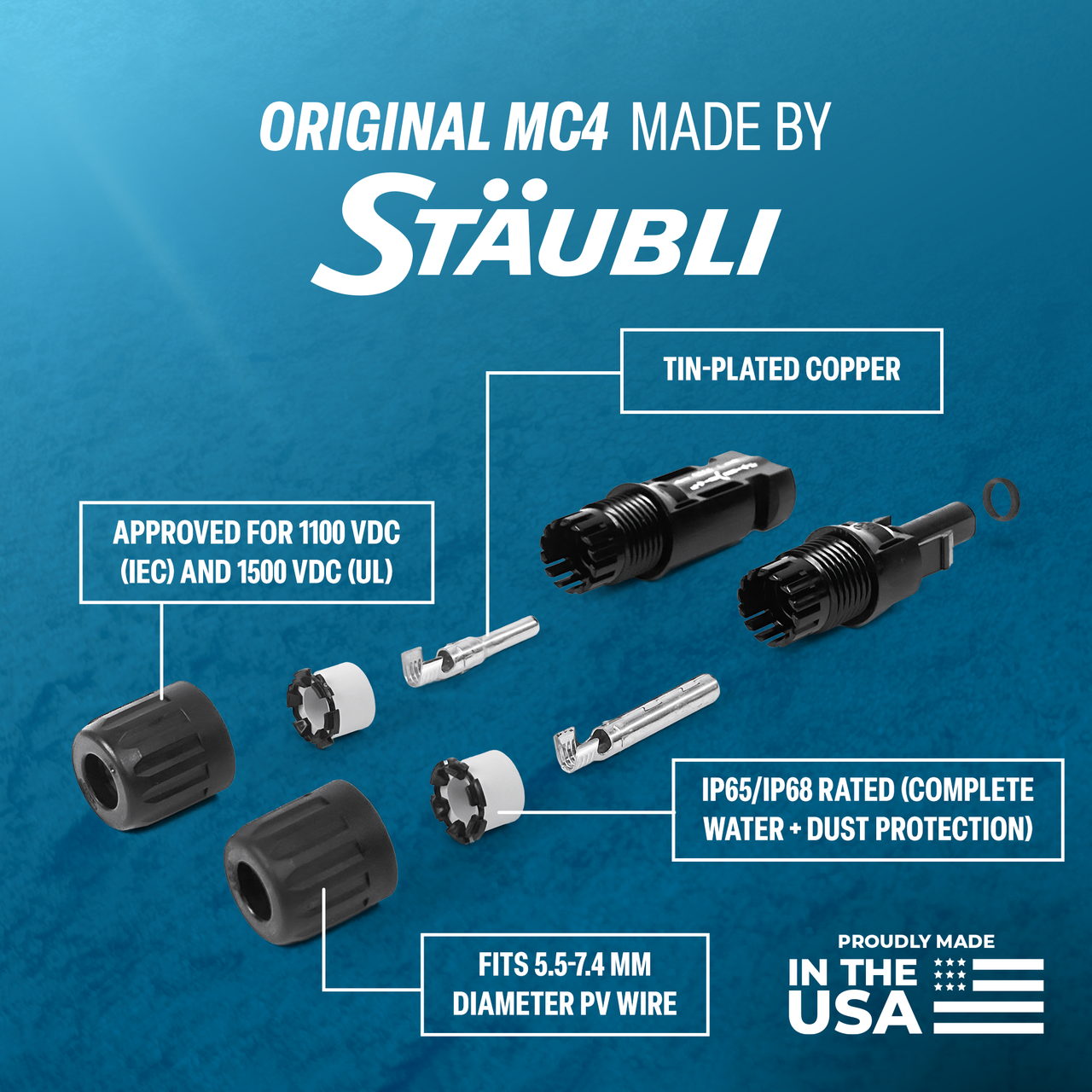

Staubli MC4 Solar Connector – Reliable, Proven, and Field-Tested. It's the industry-leading photovoltaic (PV) connector trusted worldwide for its unmatched reliability, performance, and long-term durability. Made in the USA. Designed and manufactured by Staubli (formerly Multi-Contact), this original MC4 connector sets the global benchmark for safe and efficient solar energy connections.
Features
- Snap-in locking mechanism for secure, vibration-resistant connections
- Low-contact resistance thanks to Staubli’s patented MULTILAM technology
- IP65/IP68 rated when mated, dust-tight and waterproof
- Rated up to 1500 VDC, with current-carrying capacities up to 50A
- Requires a solar crimper tool like TEMCo's TH0011.
- Fits TEMCo 10 AWG or 12 AWG PV solar cable or any other PV cable that has a 5.5-7.4mm outer diameter
TEMCo Industrial is an authorized seller of Staubli MC4 connectors.
Staubli P/N's
32.0142P0001-UR
32.0143P0001-UR
⚠️ This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
- Protection Grade:
- Safety class II
- Contact Resistance:
- 5m Ohms or less
- Rated Amps:
- 50
- Insulation material:
- PC/PA
- Max Temperature Range:
- 85 Degrees C
- Min Temperature Range:
- -40 Degrees C
- Lot Quantity:
- 10 pair
- Contact material:
- Tin Plated Copper
- Rated Voltage:
- 1500 VDC
- Test Volatage:
- 6 kV (50 Hz)
- Insertion Force:
- 50N or less
- Withdrawl Force:
- 50N or more
- Locking System:
- Snap in
- Wire Capacity:
- 8, 10, 12, 14 AWG
