Features
- CSA Approved
- UL Listed
- Copper windings
- 1.5 to 2 week build time
- Built with heat-proof insulation for compact size and long life.
- Soldily fixed terminals with standard combination slotted Robertson head screw connections facilitate wiring.
- Unique bobbin-wound coils for greater efficiency, superior heat evacuation, and compact structure. .

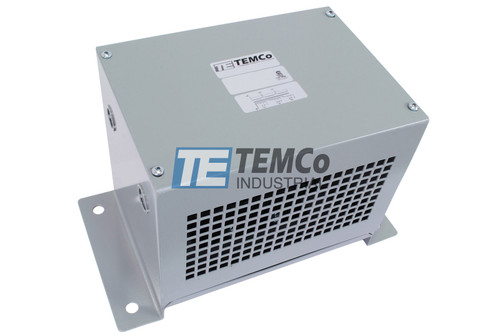

TEMCo's 3 Phase Control Transformers are copper wound and built with heat-proof insulation for compact size and long life. Wiring is made easy by the solidly fixed terminals with standard combination slotted Robertson head screw connections. Bobbin-wound coils provide better efficiency, great heat evacuation, and compact structure. These units are built to last, guaranteed, backed with a 10 Year Warranty. Looking for a different specification? Check out our link to our 3 phase control transformer selection guide on the right of this page. We carry thousands of models in all kinds of configurations.
Please call us for additional options:
- NEMA 4/4X
- Encapsulation
- Other voltages/multiple taps
- Electrostatic shield
| Output Amps | |
| 120 V | 7.22 |
- Bil Rating Kv:
- 4
- Temperature Rise:
- NA
- Insulation System:
- 155
- Manufacturer:
- TEMCo
- Enclosure Rating:
- NEMA 1
- Input Voltage:
- 575
- Output Voltage:
- 120
- Enclosure Material:
- Steel
- UL Listed:
- NO
- CSA Approved:
- YES
- Transformer Type:
- Control
- Phase:
- Three
- Kva:
- 1.5
- Winding Material:
- Copper
- Primary Configuration:
- Delta
- Secondary Configuration:
- Delta
- Reverse Connectable:
- YES
- Electrostatically Shielded:
- NO
- Construction Type:
- Enclosed (Ventilated Core & Coil)
- Cooling:
- Air/Dry
- Connection Type:
- Lugs/Bolt down Terminals
- Frequency Hz:
- 50/60
- K Rating:
- 1
- Mounting Type:
- Floor or Wall
- Sound Level db:
- Less than 40
- Agency Approvals:
- NA
- Manufacturer Part Number:
- T02771
10 Years
