TEMCo Hydraulic Cable Lug Crimper TH0006 - 5 US TON - 12 AWG to 00 (2/0)

Rating:
96% of 100
$79.00
In stock
SKU
TH0006
Shipping: FREE via Fedex Ground
Includes 9 die sets (12, 9, 8, 6, 4, 3, 2, 1/0, and 2/0 AWG). 5 Year Warranty.
Specifications View more Close tab
More Information
TEMCo IDTH0006
Weight (lb)4.2
Crimping Range12 AWG to 00 MCM (2/0)
Crimping TypeCompression
Crimping Force5 US Tons (10000 lbs)
Crimping ActionHydraulic
Stroke Length0.3937 in (10 mm)
Terminal typeUninsulated
Warranty5 Years
CA Prop 65 ⚠ WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Support Information View more Close tab
Warranty
pdf
(Size: 379.2 KB)
Related Information View more Close tab
Product Description View more Close tab

Hydraulic crimper with 12 to 00 AWG (2/0) crimping range. Includes 9 die sets (12, 9, 8, 6, 4, 3, 2, 1/0, and 2/0 AWG). 5 US Ton crimping force. Black oxide crimp head and dies. For use with all battery cable and welding cable, building wiring, and crimp terminal lugs (including heavy cast lugs. 5 Year Warranty.

Features

  • Black Oxide Crimp Head & Dies won't chip or flake. If you've ever used a chrome-plated socket on an impact gun, you know how old style chrome-plated models can chip and peel.
  • TRUE 5 US TON capacity.
  • Designed for 12 Gauge through 00 Gauge (2/0). Includes 9 Die Sets (12, 9, 8, 6, 4, 3, 2, 1/0, and 2/0 AWG).
  • Forged instead of Cast Crimping Head Frame ensures repeatable performance.
  • Produces perfect, solid crimp terminations every time.
  • Use with all crimp terminal lugs, including heavy cast lugs.
  • Perfect for Battery & Welder Cables, Building Wiring, and more.
  • Includes Hydraulic Rebuild Kit. You'll probably never need it, but we've included one anyway.
  • 5 Year Warranty from a well-known American name. NON-GENERIC

How to Use Crimper

TEMCo TH0006 Crimper Step 1
TEMCo TH0006 Crimper Step 2
TEMCo TH0006 Crimper Step 3
TEMCo TH0006 Crimper Step 4

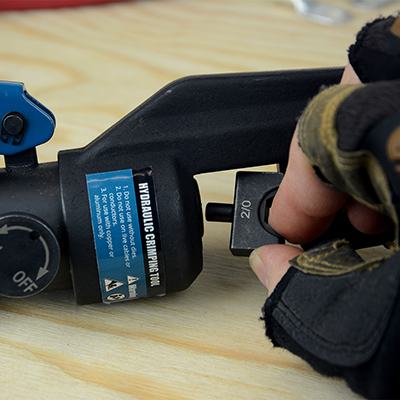

STEP 1 Install the die set that matches your terminal size.

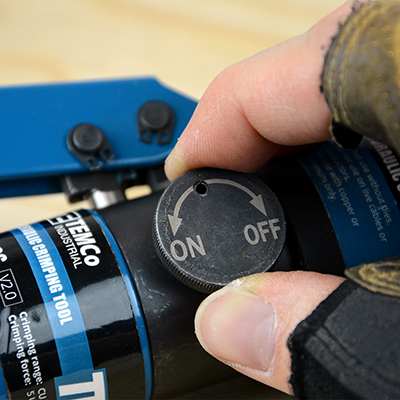

STEP 2 Close the release valve by rotating to the right.

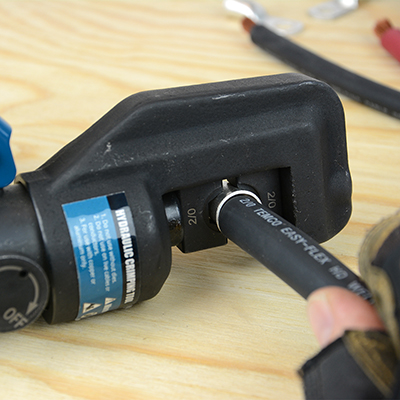

STEP 3 Pump the handle until the resistance felt becomes significant or the dies bottom out.

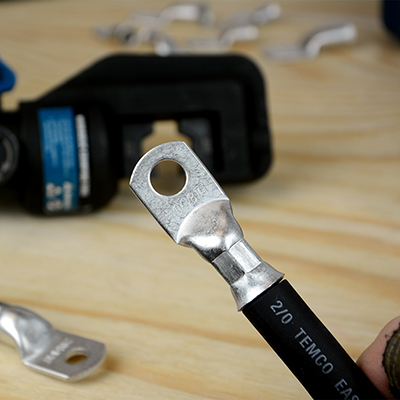

STEP 4 Open the release valve by rotating to the left. Your termination is now complete.

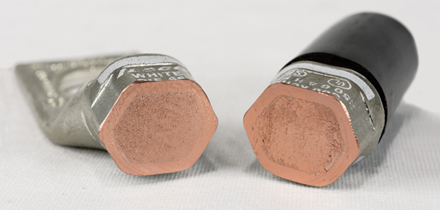

NOTE: Many factors affect die selection; wire stranding type, lug wall thickness & fitment etc. Select a die set that gives good compression on all 6 crimp forming surfaces. See guaranteed crimp quality photo below::


TEMCo Crimp Integrity
