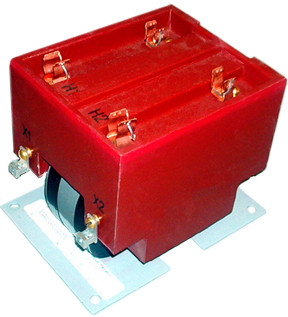

TEMCo Control Power Transformers (CPT) are used to supply power to control circuit in electrical panels.
Features
- Open construction with encapsulated coil
- 60 kV BIL
- CSA C22.2 #47 M90, 66-1988, and C9-02
- UL ANSI C57.13.2
- Fuse kits available as add-on (contact us for more info)
- Bil Rating Kv:
- 60
- Temperature Rise:
- 115
- Insulation System:
- 185
- Manufacturer:
- TEMCo
- Enclosure Rating:
- NA
- Input Voltage:
- 4160
- Output Voltage:
- 240/480
- Enclosure Material:
- N/A
- UL Listed:
- YES
- CSA Approved:
- YES
- Transformer Type:
- Control (Encapsulated)
- Phase:
- Single
- Kva:
- 5
- Winding Material:
- Copper
- Primary Configuration:
- One Winding
- Secondary Configuration:
- Two Winding
- Reverse Connectable:
- YES
- Electrostatically Shielded:
- NO
- Construction Type:
- Open (Encapsulated Core & Coil)
- Cooling:
- Air/Dry
- Connection Type:
- Screw terminals
- Frequency Hz:
- 60
- K Rating:
- 1
- Mounting Type:
- Base/panel
- Sound Level db:
- NA
- Agency Approvals:
- UL ANSI C57.13.2
- Manufacturer Part Number:
- T47802
10 Years
