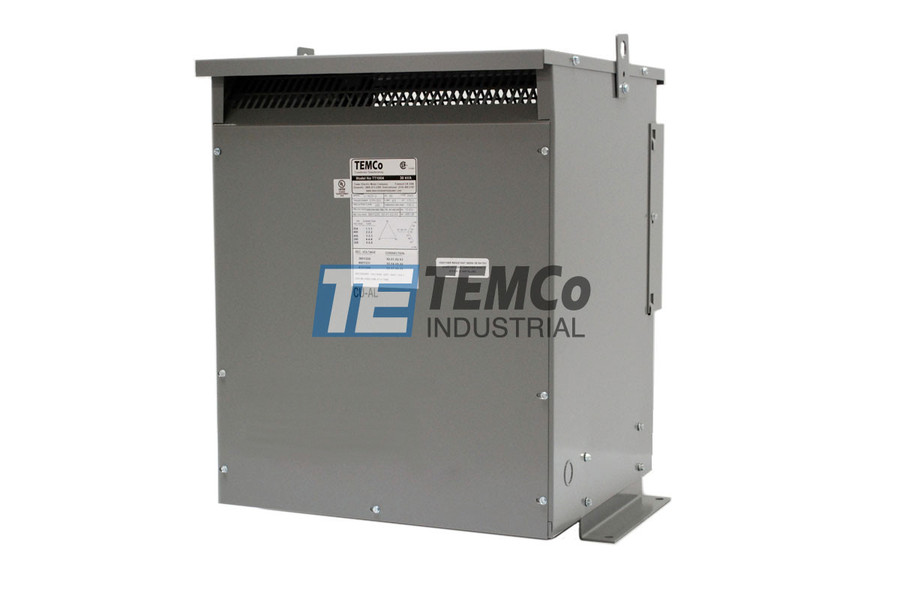

TEMCo Medium Voltage Transformer T57572 50 kVA, 7200 Primary Volts x 600 Secondary Volts, 60 Hz, Single Phase, Aluminum

Standard Price: $27,040.83
TEMCo Direct: $24,143.60
( saved $2,897.23 )
No reviews yet Write a Review
SKU:
T57572
Availability:
Build to order in 6 to 8 weeks
Weight:
0.00 LBS
Width:
29.75 (in)
Height:
31.75 (in)
Depth:
30.75 (in)
Shipping:
$200.00 (Fixed Shipping Cost)

TEMCo Medium Voltage Isolation Transformers are designed for stepping down incoming higher voltage power to utilize voltages for commercial, institutional, or industrial applications. The NEMA 3R ventilated enclosure makes it suitable for indoor use as well as outdoor protection against rain and sleet. Our transformers are built to last, guaranteed. That's why we back these with a decade long warranty. For copper or aluminum windings in other sizes, please refer to the "Related Products" section below, or view the TEMCo Medium Voltage Isolation Transformer Selection Guide for the part number (link to the right).


Features

  • 60 Hz
  • NEMA 3R
  • 150°C rise
  • UL Listed and CSA Certified
  • 10 Year Warranty
TEMCo Medium Voltage Transformer Selection Guide
Bil Rating Kv:
45
Temperature Rise:
150
Insulation System:
220
Manufacturer:
TEMCo
Enclosure Rating:
NEMA 3R
Input Voltage:
7200
Output Voltage:
600
Enclorse Type:
Steel
UL Listed:
YES
CSA Approved:
YES
Transformer Type:
Isolation
Phase:
Single
Kva:
50
Winding Material:
Aluminum
Primary Configuration:
One Winding
Secondary Configuration:
One Winding
Reverse Connectable:
YES
Electrostatically Shielded:
NO
Construction Type:
Enclosed (Ventilated Core & Coil)
Cooling:
Air/Dry
Connection Type:
Lugs/Bolt down Terminals
Frequency Hz:
60
k Rating:
1
Mounting Type:
Floor
Sound Level db:
NA
Agency Approvals:
CAN/CSA-C802.2-00
Manufacturer Part Number:
T57572
10 Years
