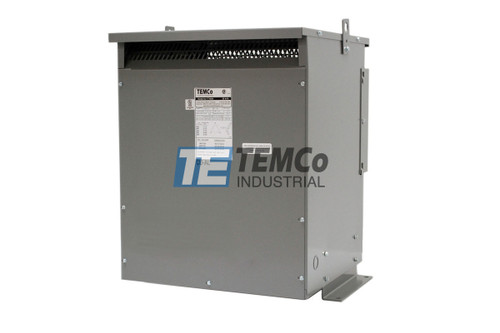

TEMCo T45254 30 kVA, 440 Primary Volts x 575Y/330 Secondary Volts, 50/60 Hz, Three Phase, Copper

TEMCo Direct: $3,674.00
No reviews yet Write a Review
SKU:
T45254
Availability:
Build to order in 6 to 8 weeks
Weight:
0.00 LBS
Width:
20.75 (in)
Height:
26.38 (in)
Depth:
23.88 (in)
Shipping:
$200.00 (Fixed Shipping Cost)

TEMCo Three Phase Isolation Transformers are 50/60 Hz rated and come in a NEMA 3R enclosure for indoor use as well as outdoor protection against rain and sleet. Our transformers are built to last, guaranteed. That's why we back these with a decade long warranty. For the same transformer with a different winding material, see the "Related Products" section below. For copper or aluminum windings in other sizes, please refer to the TEMCo Three Phase Isolation Transformer Selection Guide for the part number (link to the right).

For rush build options and custom kVA sizes, please call us for a quote.

Features

  • 50/60 Hz
  • NEMA 3R
  • 150°C rise
  • UL Listed and CSA Certified
  • 10 Year Warranty

TEMCo 3 Phase Isolation Transformers Selection Guide
Bil Rating Kv:
10
Temperature Rise:
150
Insulation System:
220
Manufacturer:
TEMCo
Enclosure Rating:
NEMA 3R
Input Voltage:
440
Output Voltage:
575Y/330
Enclorse Type:
Steel
UL Listed:
YES
CSA Approved:
YES
Transformer Type:
Isolation
Phase:
Three
Kva:
30
Winding Material:
Copper
Primary Configuration:
Delta
Secondary Configuration:
Wye
Reverse Connectable:
YES
Electrostatically Shielded:
NO
Construction Type:
Enclosed (Ventilated Core & Coil)
Cooling:
Air/Dry
Connection Type:
Lugs/Bolt down Terminals
Frequency Hz:
50/60
k Rating:
1
Mounting Type:
Floor or Wall
Sound Level db:
45
Agency Approvals:
NA
Manufacturer Part Number:
T45254
10 Years
