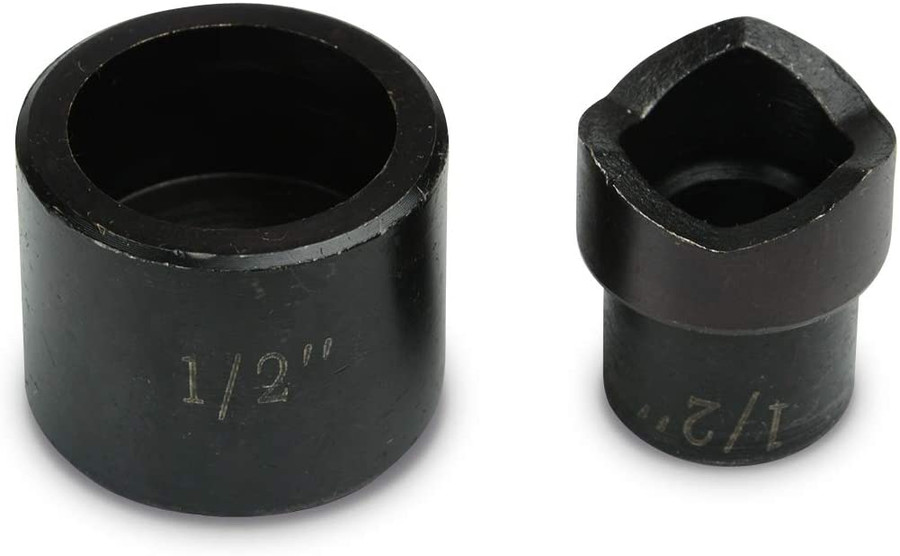

Our punch dies are sized to conduit sizes, not actual hole sizes. Electricians use these sizes because conduits are measured by the inner diameter of the tube, not their outer diameter. That means, for example, a 1" punch die will correctly punch for a 1" conduit tube (which has an actual hole size of roughly 1.33"). We've provided you with a handy table below that shows the actual hole size produced by our punch die/conduit sizes in this set.
NOTE: No threads. Meant to be used with TEMCo draw stud or any 0.430" diameter draw stud with knurled nut.
- Punching Dies Included:
- 1/2 inch
- Punchable Materials:
- Steel, Stainless Steel, Brass, Copper, Aluminum (soft alloys only, not for use with 7075 or other super alloys), Fiberglass, Plastic and more.
- Construction Material:
- Hardened Tool Steel, Black Oxide Finish
- Punching Thickness Capacity:
- 1/8 inch (11 ga) Steel, 1/16 inch Stainless Steel
- Required Punching Force:
- 9 US Tons
- Fits Draw Stud Size:
- TEMCo THA012, THA013, THA015 or any draw stud with a diameter of 0.430 inch (10.90mm)
