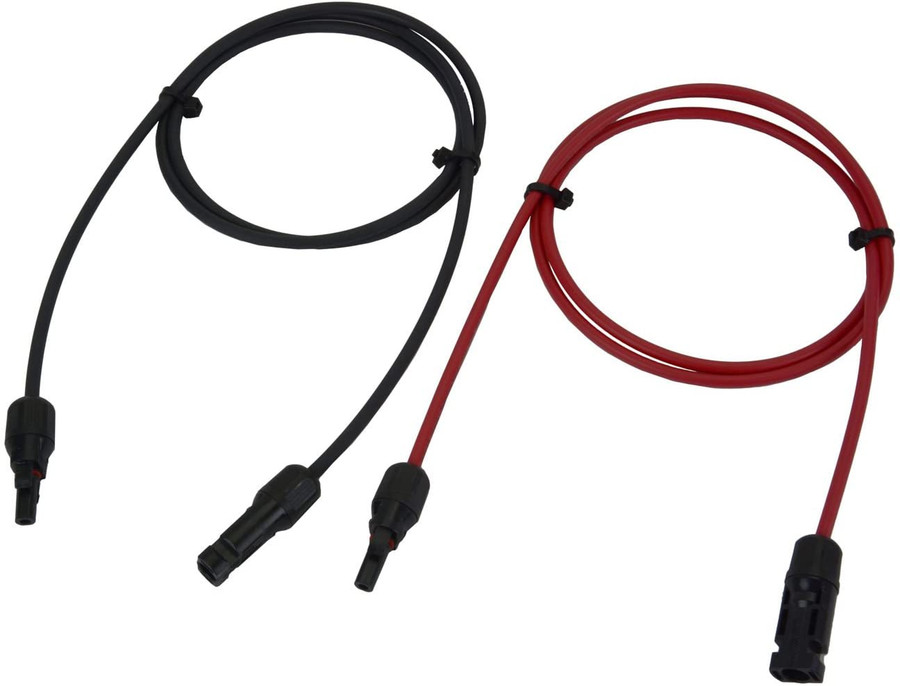

10 AWG Solar Panel Extension - 1 Pair 5 ft Black/Red

Standard Price: $14.95
TEMCo Direct: $13.46
( saved $1.49 )
No reviews yet Write a Review
SKU:
CPV173
Weight:
0.00 LBS
Shipping:
Free Shipping

Agency Approvals:
Type USE-2 per UL 854, RHH/RHW-2 per UL 44, Type PV per UL 4703
Feet per Pound:
17.54
Display Weight lbs:
0.63
Contact Resistance:
5m Ohms or less
Rated Amps:
30
Nominal Outside Diameter:
0.23
Insulation Material:
Cross linked Polyethylene (XLP)
Max Temperature Rating:
90°C
Min Temperature Rating:
-40°C
Conductor Stranding:
19 strands per conductor
Insulation Thickness:
0.075
Test Voltage:
NA
Insertion Force:
50N or less
Withdrawal Force:
50N or more
Locking System:
Snap in
Connector Insulation Material:
PC/PA
Connector Min Temp:
-40°C
Connector Max Temp:
85°C
Maximum Voltage:
600
Contact Material:
Copper, silver-plated
Conductor Size:
10 AWG
Length Ft:
5
Amps Per Conductor:
40
Conductor Type:
Stranded
Jacket Color:
Black/Red
Rated Voltage:
1000 VDC
Connection Type:

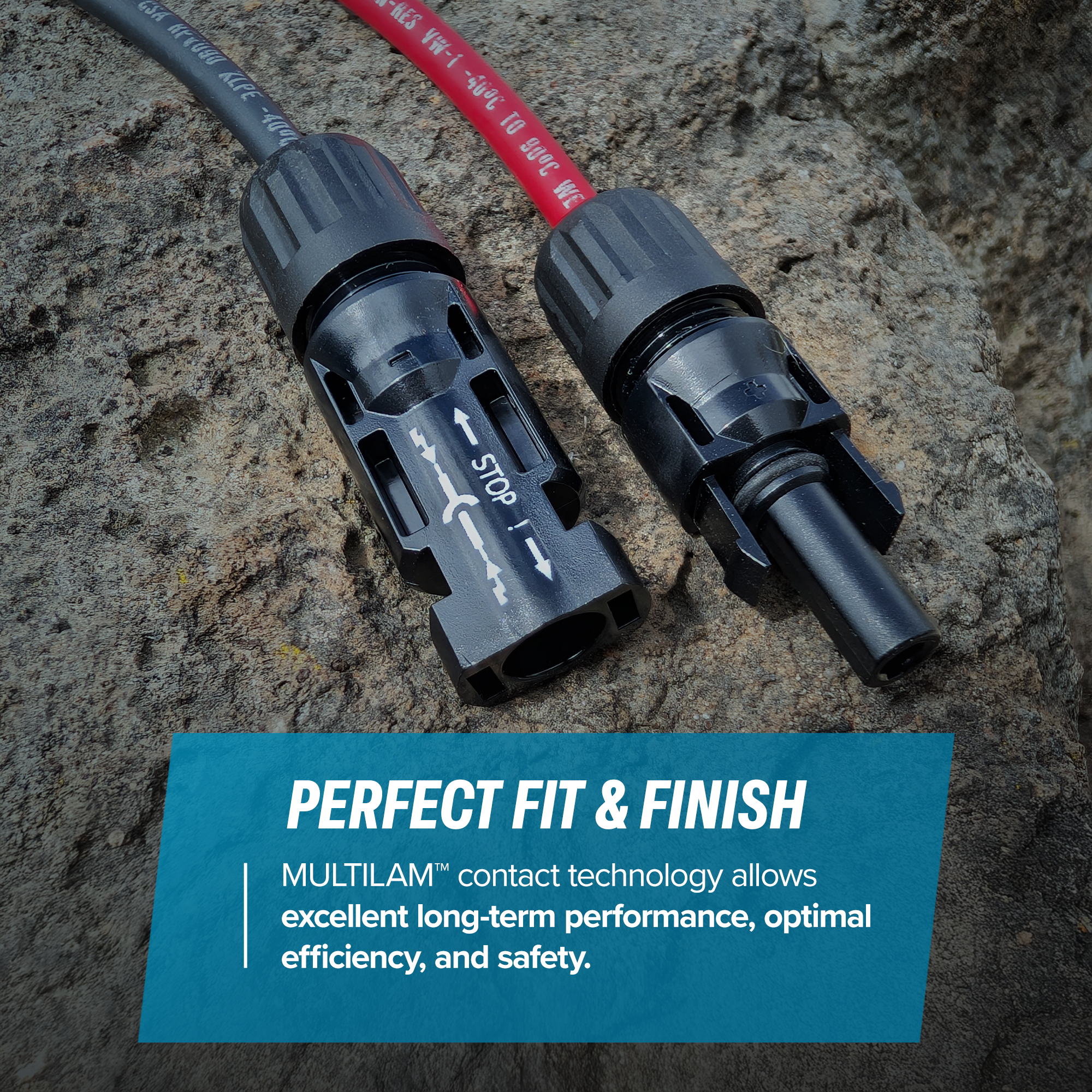

MC4
