- Agency Approvals:
- Type USE-2 per UL 854, RHH/RHW-2 per UL 44, Type PV per UL 4703
- Feet per Pound:
- 26.18
- Display Weight lbs:
- 7
- Contact Resistance:
- 5m Ohms or less
- Rated Amps:
- 30
- Nominal Outside Diameter:
- 0.21
- Insulation Material:
- Cross linked Polyethylene (XLP)
- Max Temperature Rating:
- 90°C
- Min Temperature Rating:
- -40°C
- Conductor Stranding:
- 19 / 0.0185
- Insulation Thickness:
- 0.075
- Test Voltage:
- NA
- Insertion Force:
- 50N or less
- Withdrawal Force:
- 50N or more
- Locking System:
- Snap in
- Connector Insulation Material:
- PC/PA
- Connector Min Temp:
- -40°C
- Connector Max Temp:
- 85°C
- Maximum Voltage:
- 600
- Contact Material:
- Copper, silver-plated
- Conductor Size:
- 12 AWG
- Length Ft:
- 100
- Amps Per Conductor:
- 31
- Conductor Type:
- Stranded
- Jacket Color:
- Black/Red
- Rated Voltage:
- 1000 VDC

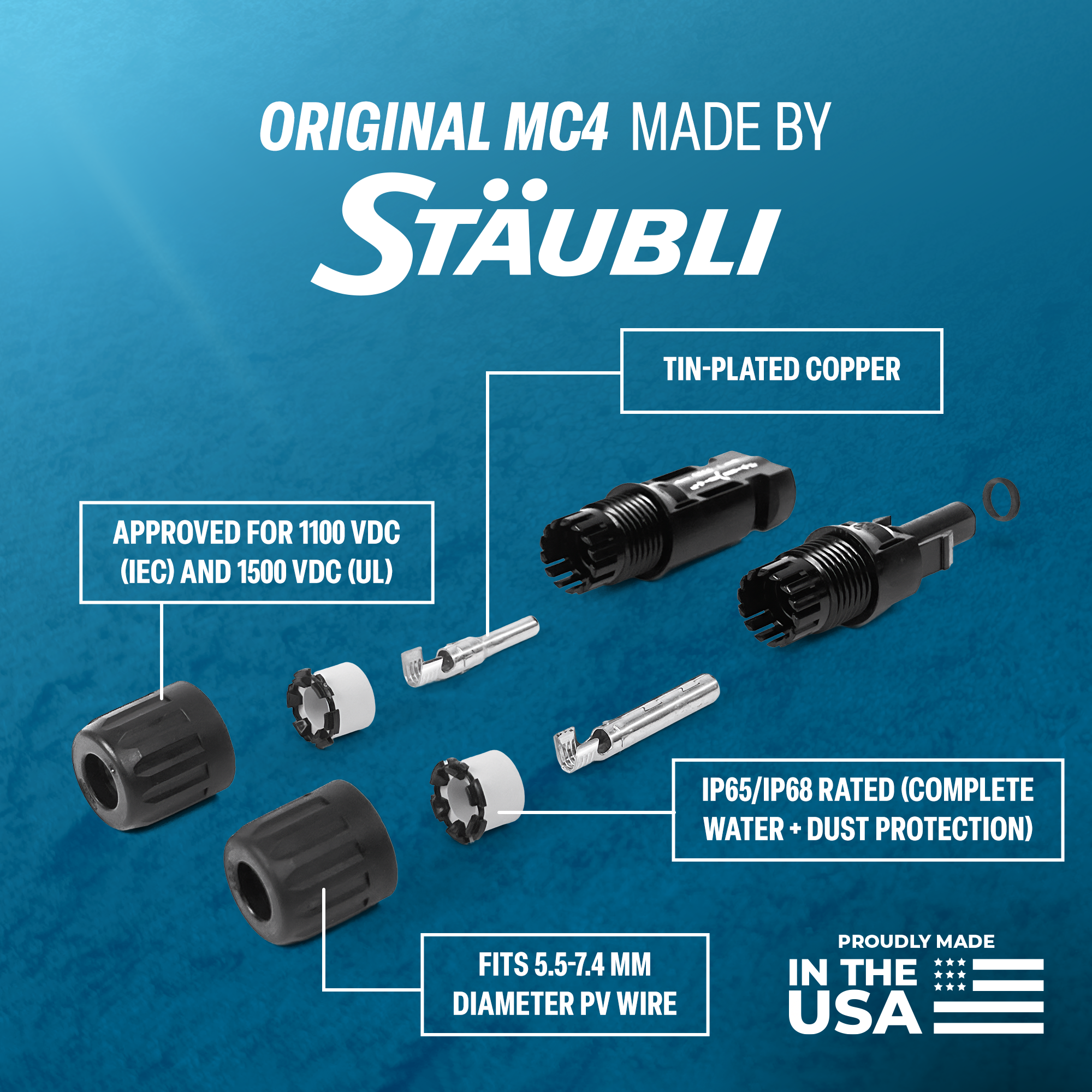

- Connection Type:
- MC4
1 Review
-
12 AWG Solar Panel Extension - 1 Pair 100 ft Black/Red
Great cable for connecting solar panels to charge controller. Easy to unwind if you start from inside of the reel. Easy to cut, easy to crimp MC4 connector with proper tools.
