- Agency Approvals:
- Type USE-2 per UL 854, RHH/RHW-2 per UL 44, Type PV per UL 4703
- Feet per Pound:
- 26.18
- Display Weight lbs:
- 4
- Contact Resistance:
- 5m Ohms or less
- Rated Amps:
- 30
- Nominal Outside Diameter:
- 0.21
- Insulation Material:
- Cross linked Polyethylene (XLP)
- Max Temperature Rating:
- 90°C
- Min Temperature Rating:
- -40°C
- Conductor Stranding:
- 19 / 0.0185
- Insulation Thickness:
- 0.075
- Test Voltage:
- NA
- Insertion Force:
- 50N or less
- Withdrawal Force:
- 50N or more
- Locking System:
- Snap in
- Connector Insulation Material:
- PC/PA
- Connector Min Temp:
- -40°C
- Connector Max Temp:
- 85°C
- Maximum Voltage:
- 600
- Contact Material:
- Copper, silver-plated

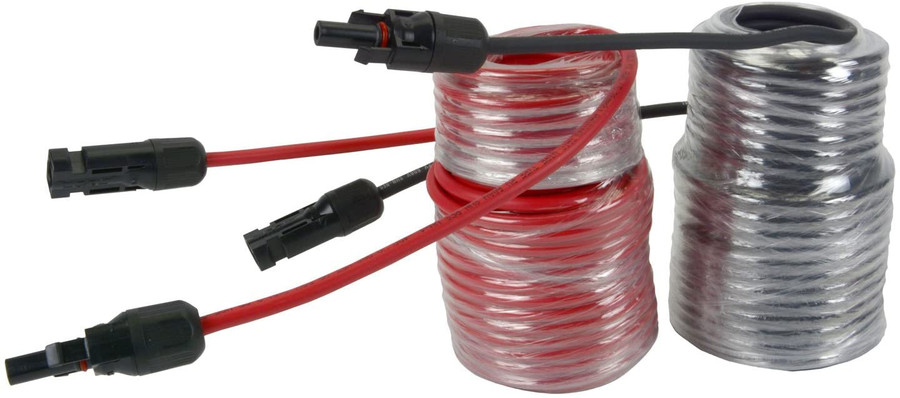

- Conductor Size:
- 12 AWG
- Length Ft:
- 50
- Amps Per Conductor:
- 31
- Conductor Type:
- Stranded
- Jacket Color:
- Black/Red
- Rated Voltage:
- 1000 VDC

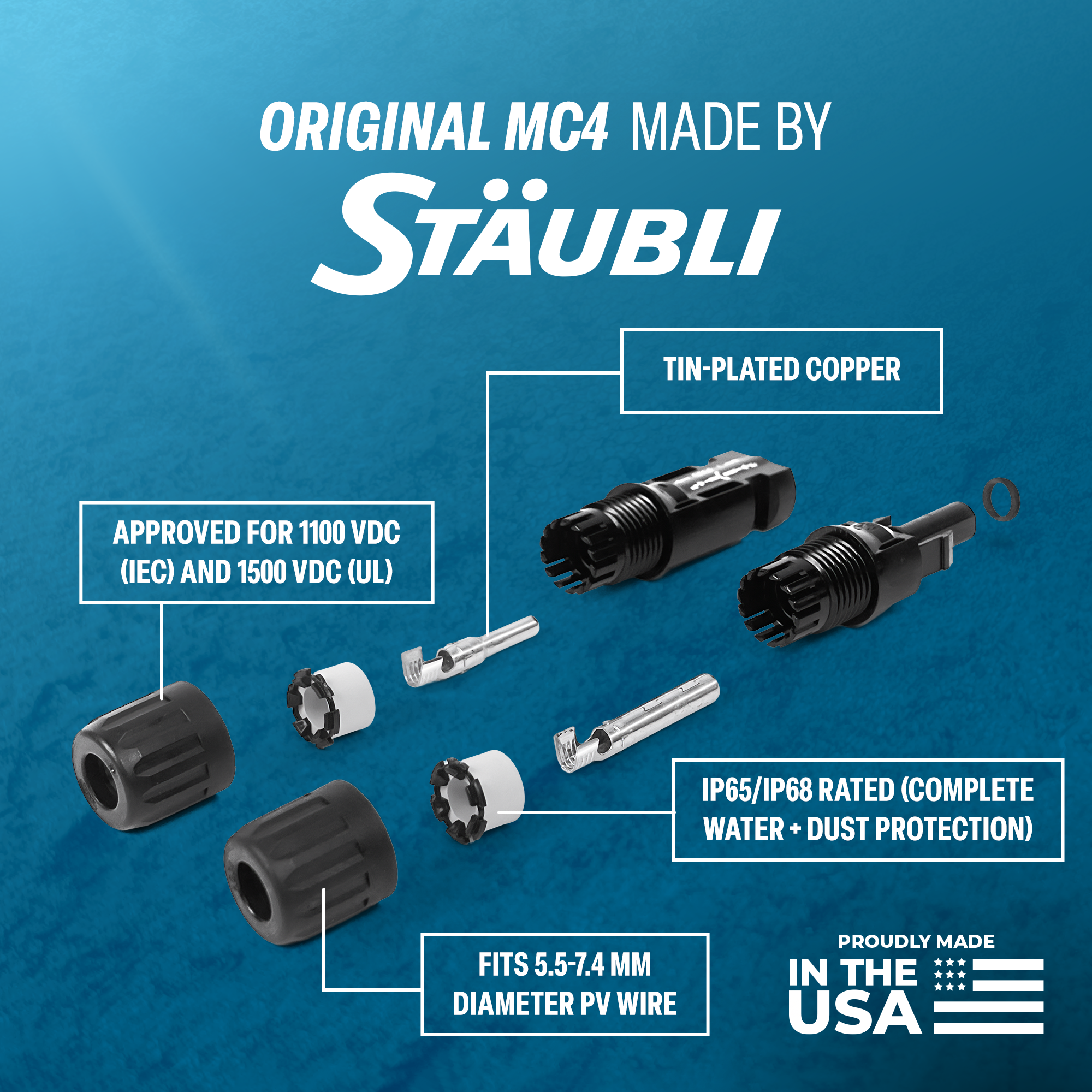

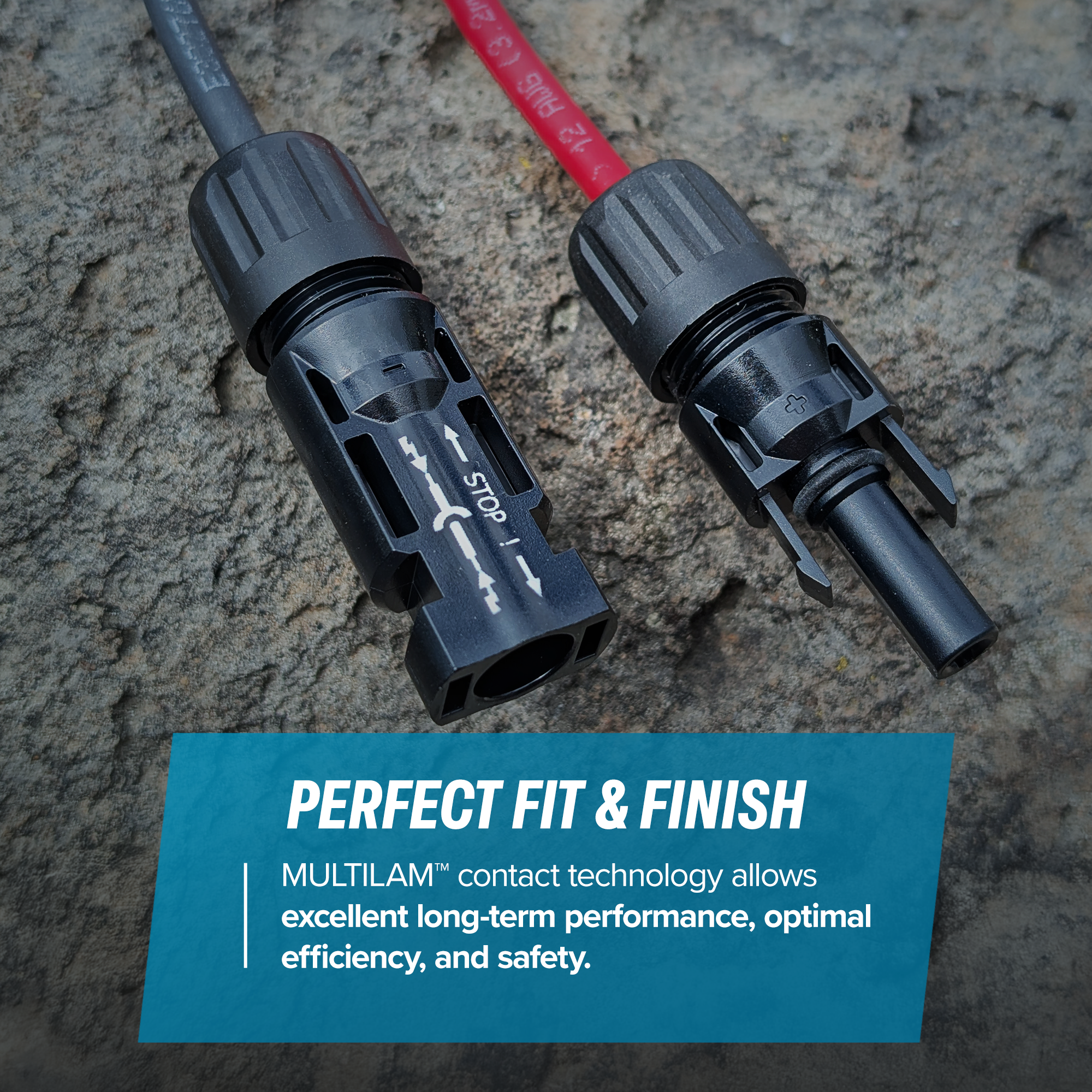

- Connection Type:
- MC4
