TEMCo's flat face hydraulic couplers use the ISO 16028 standard, which replaces older ag coupler standards that result in hydraulic oil spillage and added debris in your hydraulic system. Our couplers are machined out of carbon steel and plated with Zinc Nickel (Zn-Ni), which offers corrosion resistance, as well as an extra layer against normal wear and tear. Each coupler is pressure tested with hydraulic oil right off the factory line.

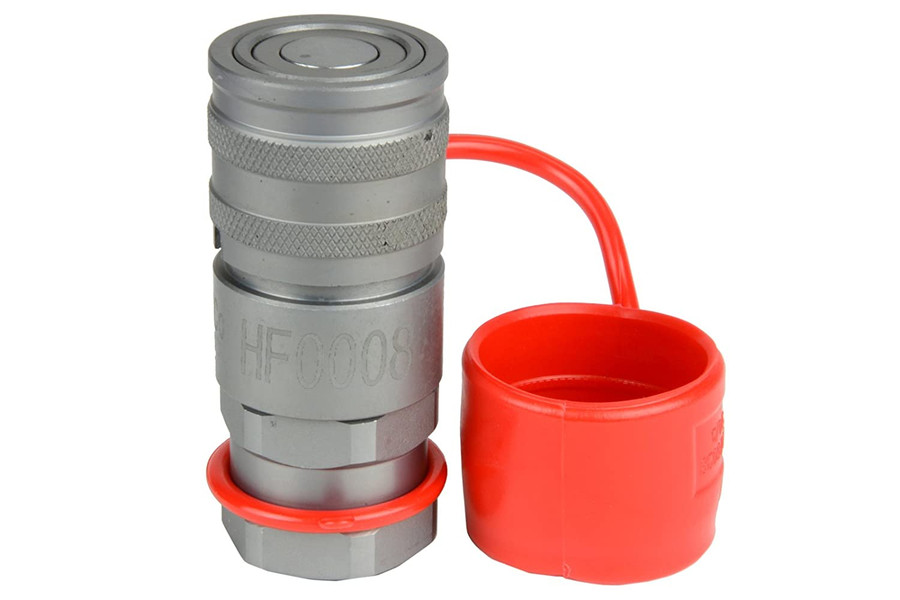

Each individual coupler comes with its own removable bright red form-fit rubber cap attached to the coupler body, adding an extra later of protection against debris ingress.
TEMCo's flat face female couplers also come with a knurled collar that interfaces a fixed ball. When rotated, the collar is locked into place - a safety feature to prevent accidental decoupling to your application.
So, whether you're buying a replacement or making an upgrade, TEMCo's hydraulic flat face couplers are designed to withstand your roughest working environment.
- Carbon Steel construction, Zinc Nickel coating, and Titanium Nitride Male Poppets.
- Flat face design prevents oil spillage and debris ingress into your hydraulic system.
- Titanium Nitride, often used for high speed steel drill bits, provides a longer wear life and proper seal after persistent usage.
- A removable cap is attached to the coupler body, further preventing contaminant ingress.
- Follows ISO 16028 standards for flat face hydraulic couplers, the updated standard used on skid steers such as Bobcats.
Rotate the knurled collar on the female coupler so that the ball and indent in the collar are misaligned. Doing so will prevent the collar from being pulled back, which disengages and releases the female coupler from the male coupler. This feature ensures a safe working environment. To disengage the coupler, simply rotate the collar into alignment and pull the collar back away from the opposing male coupler.
- Coupler Compatibility:
- Skid Steer Bobcat Also Upgrades ENERPAC Compatible Couplers
- Zinc Nickel
- Body Material:
- Carbon Steel
- Poppett Coating:
- Rated Flow:
- 13.21 Gallons per Minute (GPM)
- Polyurathane Seal Temp range:
- -13°F to 193°F
- NBR Seal Temp Range:
- -4°F to 176°F
- PTFE Seal Temp Range:
- -148°F to 262°F
- Rated Pressure:
- 5076.32 PSI
- Cap Inculded:
- Hydraulic Coupler ISO number:
- Hydraulic Coupler Thread:
- 3/4 SAE"
- Hydraulic Coupler Valve:
- Flat Face
- Hyrdaulic Coupler Connection:
