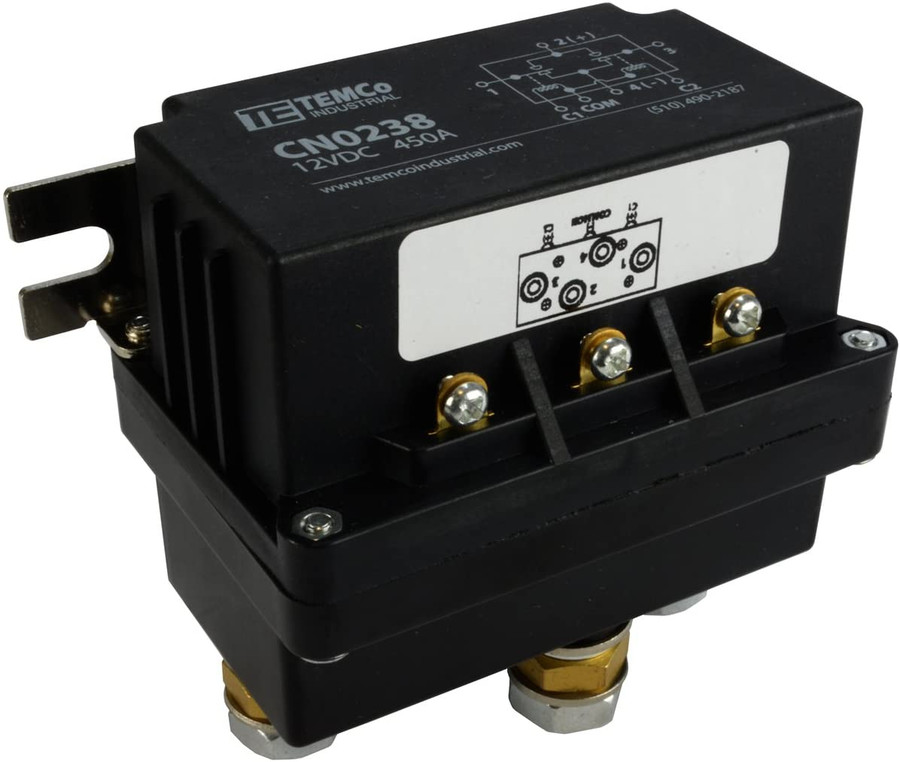

- Coil Voltage: 12 VDC, Switching Current: 450 Amps, Contact Voltage: 80 VDC maximum
- Insulation Resistance: 100 Mohm, Dielectric Strength: Between open contacts - 900 VAC, Between coil & contact - 900 VAC
- Electrical Cycle Life: 20,000 continuous operations at 100A, 2000 intermittent operations at 450A
- Mechanical Cycle Life: 100,000 operations, Temperature Range: ~40 to +55 deg C
- 5 Year Warranty
Note: Not rated for continuous duty.
- Coil Voltage:
- 12 VDC
- Switching Current:
- 450 Amps
- Contact Voltage:
- 80 VDC maximum
- Insulation Resistance:
- 100 MOhm
- Dielectric Strength:
- Between open contacts - 900 VAC, Between coil & contact - 900 VAC
- Mechanical Cycle Life:
- 100,000 operations
- Electrical Cycle Life:
- 20,000 continuous operations at 100A, 2000 intermittent operations at 450
- Temperature Range:
- ~40 to +55 deg C
- IP Rating:
- IP67
- Warranty:
- 5 Years
