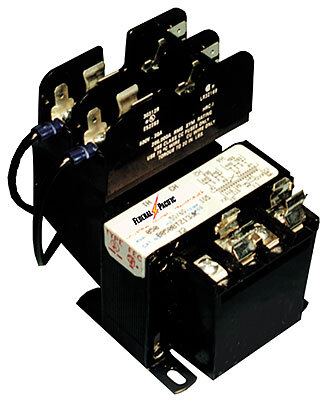

FA500JK Control - Encapsulated Transformer FT0513

Standard Price: $145.00
TEMCo Direct: $116.25
( saved $28.75 )
No reviews yet Write a Review
SKU:
FT0513
Availability:
4 to 5 weeks
Weight:
19.20 LBS
Width:
4.75 (in)
Height:
5.50 (in)
Depth:
5.25 (in)
Shipping:
$19.78 (Fixed Shipping Cost)

Features

  • Epoxy encapsulated coils
  • Secondary fuse clips where applicable
  • Optional primary fusing
  • Molded terminal barriers
  • 10-32 screw terminals
  • Molded-in screws
  • Phil-slot screws
  • Laminations of the finest silicon steel minimize core losses and increase performance and efficiency
  • UL 506 Listed
  • CSA Certified
  • Insulation materials of the highest rating available for the temperature class
  • Mounting brackets are heavy gauge steel to add strength to core construction and provide stable mounting
  • Slotted mounting feet permit easy installation
  • Attractive black finish; easy to read nameplate with complete rating data and wiring diagram
Bil Rating Kv:
NA
Temperature Rise:
55
Insulation System:
105
Manufacturer:
Federal Pacific
Enclosure Rating:
Open
Input Voltage:
240x480, 230x460, 220x440
Output Voltage:
120, 115, 110
Enclosure Material:
N/A
UL Listed:
YES
CSA Approved:
YES
Transformer Type:
Control - Encapsulated
Phase:
Single
Kva:
0.5
Winding Material:
Copper
Primary Configuration:
Two Winding
Secondary Configuration:
One Winding
Reverse Connectable:
YES
Electrostatically Shielded:
NO
Construction Type:
Open - Cast or Encapsulated Core & Coil
Cooling:
Air/Dry
Connection Type:
Screw terminals
Frequency Hz:
50/60
K Rating:
1
Mounting Type:
Base/panel
Sound Level db:
Less than 40
Agency Approvals:
NA
Manufacturer Part Number:
NA
1 Year
