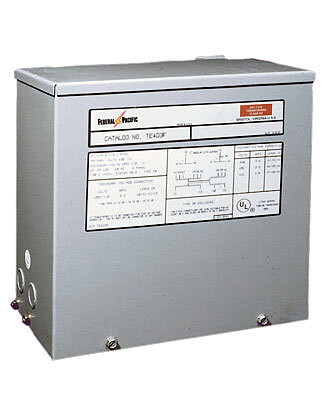

Federal Pacific FT0061 Isolation Transformer 218,213,208,203,198 Pri, 120/240 Sec - 25 kVA - 60 Hz - 1 Ph NEMA 3R Aluminum Encapsulated

TEMCo Direct: $1,578.15
No reviews yet Write a Review
SKU:
FT0061
Availability:
4 to 5 weeks
Weight:
195.00 LBS
Width:
19.00 (in)
Height:
33.00 (in)
Depth:
17.00 (in)
Shipping:
$390.64 (Fixed Shipping Cost)

Indoor enclosure (accessible to authorized personnel only). Bolted panel construction, freestanding floor mounted construction , TP 1 compliant; energy efficiency based on linear loading only. ANSI 61 paint color, UL listed.

Bil Rating Kv:
10
Temperature Rise:
150
Insulation System:
NA
Manufacturer:
Federal Pacific
Enclosure Rating:
NEMA 3R
Input Voltage:
218213208203198
Output Voltage:
120/240
Enclorse Type:
Steel
UL Listed:
YES
CSA Approved:
NO
Transformer Type:
Isolation
Phase:
Single
Kva:
25
Winding Material:
Aluminum
Primary Configuration:
One Winding
Secondary Configuration:
Two Winding
Reverse Connectable:
YES
Electrostatically Shielded:
NO
Construction Type:
Enclosed - Ventilated Core & Coil
Cooling:
Air/Dry
Connection Type:
Lugs/Bolt down Terminals
Frequency Hz:
60
k Rating:
1
Mounting Type:
Floor
Sound Level db:
NA
Agency Approvals:
TP 1 Compliant
Manufacturer Part Number:
FT0061
12 Years
