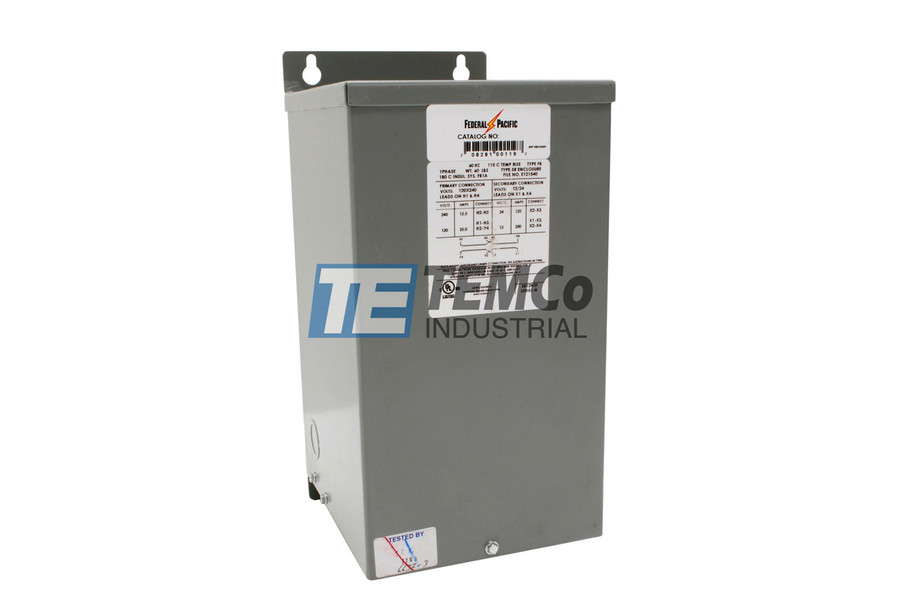

K1XGF16-0.05 Buck Boost Transformer FT0071

Standard Price: $85.00
TEMCo Direct: $67.50
( saved $17.50 )
No reviews yet Write a Review
SKU:
FT0071
UPC:
7.08281E+11
Availability:
Usually ships within 24 hours
Weight:
8.00 LBS
Shipping:
$11.19 (Fixed Shipping Cost)
Equivalent Buck-Boost Transformer Models
Manufacturer Same Size Next Larger Next Smaller
Acme AT1479 AT1480 -
Federal FT0071 FT0081 -
GE GT1106 GT1107 -

This versatile transformer will produce any of the below voltage combinations. Verify that your application falls under the capactiy given in amps or kVA for the voltage combination selected. If you would like to increase or reduce the capacity beyond what this model offers, see the Equivalent Models table above.


Boost Voltage (Increase) - SINGLE PHASE
Input Volts Output Volts kVA Amps Connection Diagram
95 120 0.188 1.56 2 - view »
101 115 0.359 3.13 1 - view »
106 120 0.375 3.13 1 - view »
110 125 0.39 3.13 1 - view »
110 139 0.218 1.56 2 - view »
115 130 0.407 3.13 1 - view »
115 146 0.228 1.56 2 - view »
120 136 0.425 3.13 1 - view »
120 152 0.238 1.56 2 - view »
203 230 0.359 1.56 4 - view »
208 236 0.368 1.56 4 - view »
220 235 0.733 3.13 3 - view »
220 249 0.39 1.56 4 - view »
230 261 0.407 1.56 4 - view »
240 256 0.8 3.13 3 - view »
240 272 0.425 1.56 4 - view »
Buck Voltage (Reduce) - SINGLE PHASE
Input Volts Output Volts kVA Amps Connection Diagram
120 95 0.188 1.98 2 - view »
115 101 0.359 3.54 1 - view »
120 106 0.375 3.54 1 - view »
125 110 0.39 3.54 1 - view »
139 110 0.218 1.98 2 - view »
130 115 0.407 3.54 1 - view »
146 115 0.228 1.98 2 - view »
136 120 0.425 3.54 1 - view »
152 120 0.238 1.98 2 - view »
230 203 0.359 1.77 4 - view »
236 208 0.368 1.77 4 - view »
235 220 0.733 3.33 3 - view »
249 220 0.39 1.77 4 - view »
261 230 0.407 1.77 4 - view »
256 240 0.8 3.33 3 - view »
272 240 0.425 1.77 4 - view »


Boost Voltage (Increase) - THREE PHASE
Input Volts Output Volts kVA Amps Qty Required Connection Diagram
184 209 0.57 1.56 2 7 - view »
195 208 1.13 3.13 2 8 - view »
208 222 1.21 3.13 2 8 - view »
208 236 0.64 1.56 2 7 - view »
225 240 1.3 3.13 2 8 - view »
230 245 1.33 3.13 2 8 - view »
234 250 1.36 3.13 2 8 - view »
234 265 0.72 1.56 2 7 - view »
240 272 0.74 1.56 2 7 - view »
240 256 1.39 3.13 2 8 - view »
184Y106 208Y120 1.13 3.13 3 10 - view »
416Y240 236Y136 1.28 3.13 3 10 - view »
379Y219 431Y249 1.17 1.56 3 12 - view »
416Y240 443Y256 2.4 3.13 3 11 - view »
416Y240 471Y272 1.28 1.56 3 12 - view »
Buck Voltage (Reduce) - THREE PHASE
Input Volts Output Volts kVA Amps Qty Required Connection Diagram
209 184 0.57 1.77 2 7 - view »
208 195 1.13 3.33 2 8 - view »
222 208 1.21 3.33 2 8 - view »
236 208 0.64 1.77 2 7 - view »
240 225 1.3 3.33 2 8 - view »
245 230 1.33 3.33 2 8 - view »
250 234 1.36 3.33 2 8 - view »
265 234 0.72 1.77 2 7 - view »
272 240 0.74 1.77 2 7 - view »
256 240 1.39 3.33 2 8 - view »
208Y120 184Y106 1.13 3.54 3 10 - view »
236Y136 416Y240 1.28 3.54 3 10 - view »
431Y249 379Y219 1.17 1.77 3 12 - view »
443Y256 416Y240 2.4 3.33 3 11 - view »
471Y272 416Y240 1.28 1.77 3 12 - view »

NOTE: Y configured units must have Y supply for proper operation.

Temperature Rise:
115
Insulation System:
180
Enclosure Rating:
NEMA 3R
Input Voltage:
120x240
Output Voltage:
16/32
Enclosure Material:
Steel
UL Listed:
Yes
CSA Approved:
Yes
Transformer Type:
Buck Boost
Phase:
Single
Kva:
0.05
Winding Material:
Copper
Primary Configuration:
Two Winding
Secondary Configuration:
Two Winding
Reverse Connectable:
Yes
Electrostatically Shielded:
No
Construction Style:
Enclosed - Encapsulated Core & Coil
Connection Type:
Wire leads
Frequency Hz:
60
K Rating:
1
Mounting Type:
Wall
Manufacturer Part Number:
K1XGF16-0.05
