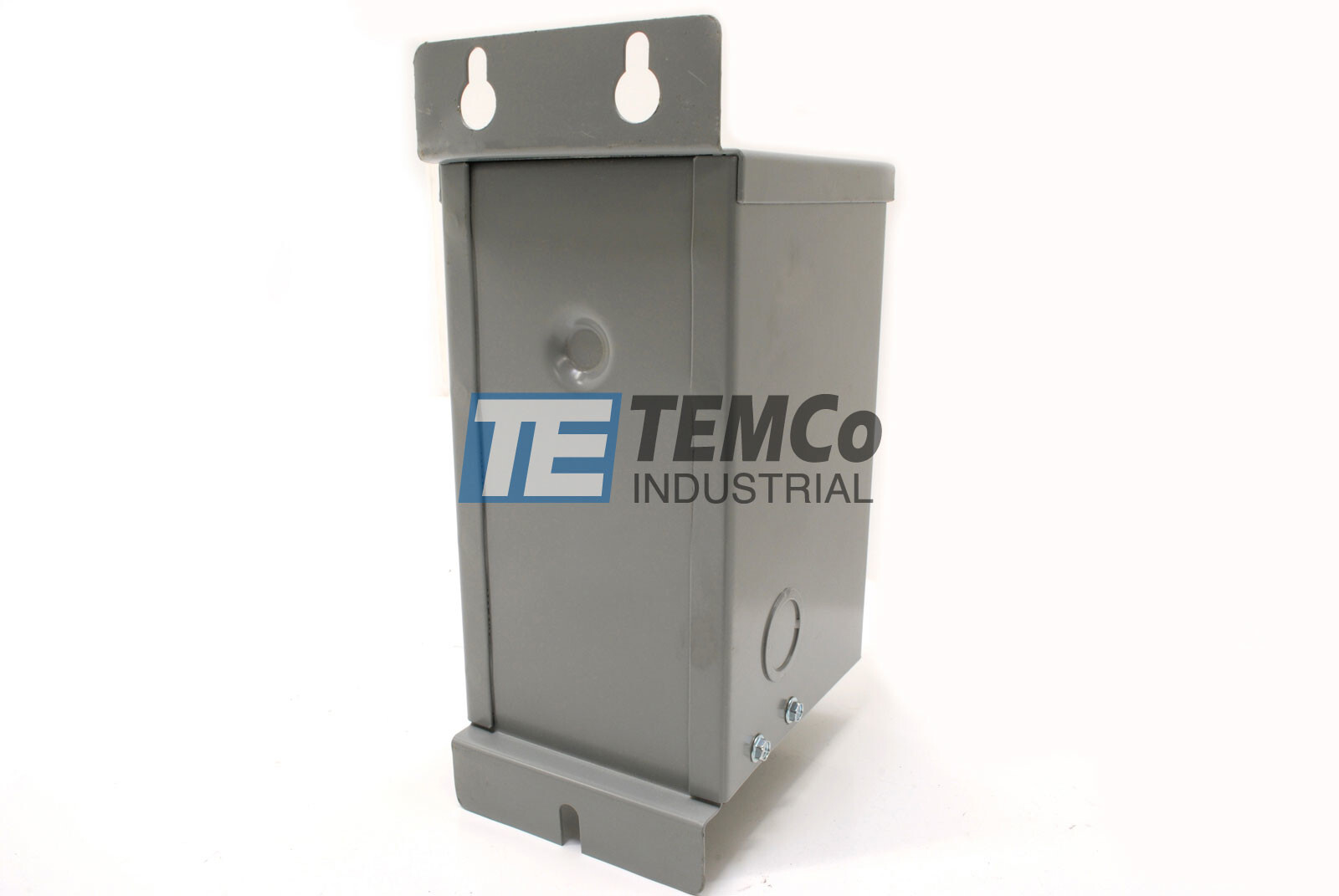

K1XGF16-3 Buck Boost Transformer FT0254

Standard Price: $500.00
TEMCo Direct: $400.00
( saved $100.00 )
No reviews yet Write a Review
SKU:
FT0254
UPC:
7.08281E+11
Availability:
Usually ships within 24 hours
Weight:
60.00 LBS
Shipping:
$361.69 (Fixed Shipping Cost)
Equivalent Buck-Boost Transformer Models
Manufacturer Same Size Next Larger Next Smaller
Acme AT1488 AT1489 AT1487
Federal FT0254 FT0282 FT0245
GE GT1116 GT1131 GT1115

This versatile transformer will produce any of the below voltage combinations. Verify that your application falls under the capactiy given in amps or kVA for the voltage combination selected. If you would like to increase or reduce the capacity beyond what this model offers, see the Equivalent Models table above.


Boost Voltage (Increase) - SINGLE PHASE
Input Volts Output Volts kVA Amps Connection Diagram
95 120 11.3 93.7 2 - view »
101 115 21.5 187 1 - view »
106 120 22.5 187 1 - view »
110 125 23.4 187 1 - view »
110 139 13 93.7 2 - view »
115 130 24.4 187 1 - view »
115 146 13.6 93.7 2 - view »
120 136 25.5 187 1 - view »
120 152 14.2 93.7 2 - view »
203 230 21.6 93.7 4 - view »
208 236 22.1 93.7 4 - view »
220 235 44 187 3 - view »
220 249 23.4 93.7 4 - view »
230 261 24.4 93.7 4 - view »
240 256 48 187 3 - view »
240 272 25.5 93.7 4 - view »
Buck Voltage (Reduce) - SINGLE PHASE
Input Volts Output Volts kVA Amps Connection Diagram
120 95 11.3 119 2 - view »
115 101 21.5 212 1 - view »
120 106 22.5 212 1 - view »
125 110 23.4 212 1 - view »
139 110 13 119 2 - view »
130 115 24.4 212 1 - view »
146 115 13.6 119 2 - view »
136 120 25.5 212 1 - view »
152 120 14.2 119 2 - view »
230 203 21.6 106 4 - view »
236 208 22.1 106 4 - view »
235 220 44 200 3 - view »
249 220 23.4 106 4 - view »
261 230 24.4 106 4 - view »
256 240 48 200 3 - view »
272 240 25.5 106 4 - view »


Boost Voltage (Increase) - THREE PHASE
Input Volts Output Volts kVA Amps Qty Required Connection Diagram
184 209 33.9 93.75 2 7 - view »
195 208 67.6 187.5 2 8 - view »
208 222 72.1 187.5 2 8 - view »
208 236 38.3 93.75 2 7 - view »
225 240 78 187.5 2 8 - view »
230 245 79.7 187.5 2 8 - view »
234 250 81.1 187.5 2 8 - view »
234 265 43.1 93.75 2 7 - view »
240 272 44.2 93.75 2 7 - view »
240 256 83.1 187.5 2 8 - view »
184Y106 208Y120 67.5 188 3 10 - view »
416Y240 236Y136 76.5 188 3 10 - view »
379Y219 431Y249 70 93.8 3 12 - view »
416Y240 443Y256 144 188 3 11 - view »
416Y240 471Y272 76.5 93.8 3 12 - view »
Buck Voltage (Reduce) - THREE PHASE
Input Volts Output Volts kVA Amps Qty Required Connection Diagram
209 184 33.9 106.3 2 7 - view »
208 195 67.6 200 2 8 - view »
222 208 72.1 200 2 8 - view »
236 208 38.3 106.3 2 7 - view »
240 225 78 200 2 8 - view »
245 230 79.7 200 2 8 - view »
250 234 81.1 200 2 8 - view »
265 234 43.1 106.3 2 7 - view »
272 240 44.2 106.3 2 7 - view »
256 240 83.1 200 2 8 - view »
208Y120 184Y106 67.5 213 3 10 - view »
236Y136 416Y240 76.5 213 3 10 - view »
431Y249 379Y219 70 106 3 12 - view »
443Y256 416Y240 144 200 3 11 - view »
471Y272 416Y240 76.5 106 3 12 - view »

NOTE: Y configured units must have Y supply for proper operation.

Temperature Rise:
115
Insulation System:
180
Enclosure Rating:
NEMA 3R
Input Voltage:
120x240
Output Voltage:
16/32
Enclosure Material:
Steel
UL Listed:
Yes
CSA Approved:
Yes
Transformer Type:
Buck Boost
Phase:
Single
Kva:
3
Winding Material:
Copper
Primary Configuration:
Two Winding
Secondary Configuration:
Two Winding
Reverse Connectable:
Yes
Electrostatically Shielded:
No
Construction Style:
Enclosed - Encapsulated Core & Coil
Connection Type:
Wire leads
Frequency Hz:
60
K Rating:
1
Mounting Type:
Wall
Manufacturer Part Number:
K1XGF16-3
