This versatile transformer will produce any of the below voltage combinations. Verify that your application falls under the capactiy given in amps or kVA for the voltage combination selected. If you would like to increase or reduce the capacity beyond what this model offers, see the Equivalent Models table above.
| Boost Voltage (Increase) - SINGLE PHASE | ||||
| Input Volts | Output Volts | kVA | Amps | Connection Diagram |
| 200 | 220 | 6.88 | 31.3 | 1 - view » |
| 208 | 229 | 7.15 | 31.3 | 1 - view » |
| 220 | 242 | 7.56 | 31.3 | 1 - view » |
| 230 | 276 | 4.31 | 15.6 | 2 - view » |
| 240 | 264 | 8.25 | 31.3 | 1 - view » |
| 380 | 418 | 6.53 | 15.6 | 4 - view » |
| 416 | 458 | 7.15 | 15.6 | 4 - view » |
| 430 | 473 | 7.39 | 15.6 | 4 - view » |
| 435 | 457 | 14.3 | 31.3 | 3 - view » |
| 436 | 480 | 7.49 | 15.6 | 4 - view » |
| 440 | 462 | 14.4 | 31.3 | 3 - view » |
| 440 | 484 | 7.56 | 15.6 | 4 - view » |
| 450 | 473 | 14.8 | 31.3 | 3 - view » |
| 456 | 479 | 15 | 31.3 | 3 - view » |
| 460 | 483 | 15.1 | 31.3 | 3 - view » |
| 480 | 504 | 15.8 | 31.3 | 3 - view » |
| Buck Voltage (Reduce) - SINGLE PHASE | ||||
| Input Volts | Output Volts | kVA | Amps | Connection Diagram |
| 220 | 200 | 6.88 | 34.4 | 1 - view » |
| 229 | 208 | 7.15 | 34.4 | 1 - view » |
| 242 | 220 | 7.56 | 34.4 | 1 - view » |
| 276 | 230 | 4.31 | 18.8 | 2 - view » |
| 264 | 240 | 8.25 | 34.4 | 1 - view » |
| 418 | 380 | 6.53 | 17.2 | 4 - view » |
| 458 | 416 | 7.15 | 17.2 | 4 - view » |
| 473 | 430 | 7.39 | 17.2 | 4 - view » |
| 457 | 435 | 14.3 | 32.8 | 3 - view » |
| 480 | 436 | 7.49 | 17.2 | 4 - view » |
| 462 | 440 | 14.4 | 32.8 | 3 - view » |
| 484 | 440 | 7.56 | 17.2 | 4 - view » |
| 473 | 450 | 14.8 | 32.8 | 3 - view » |
| 479 | 456 | 15 | 32.8 | 3 - view » |
| 483 | 460 | 15.1 | 32.8 | 3 - view » |
| 504 | 480 | 15.8 | 32.8 | 3 - view » |
| Boost Voltage (Increase) - THREE PHASE | |||||
| Input Volts | Output Volts | kVA | Amps | Qty Required | Connection Diagram |
| 173 | 208 | 5.62 | 15.6 | 2 | 5 - view » |
| 200 | 240 | 6.5 | 15.6 | 2 | 5 - view » |
| 208 | 250 | 6.76 | 15.6 | 2 | 5 - view » |
| 362 | 380 | 21.6 | 31.3 | 2 | 6 - view » |
| 380 | 418 | 11.3 | 15.6 | 2 | 7 - view » |
| 400 | 440 | 11.9 | 15.6 | 2 | 7 - view » |
| 419 | 440 | 25 | 31.3 | 2 | 8 - view » |
| 436 | 480 | 13 | 15.6 | 2 | 7 - view » |
| 457 | 480 | 27.2 | 31.3 | 2 | 8 - view » |
| 480 | 528 | 14.3 | 15.6 | 2 | 7 - view » |
| 480 | 504 | 27.3 | 31.3 | 2 | 8 - view » |
| 346Y200 | 416Y240 | 11.3 | 15.6 | 3 | 9 - view » |
| 379Y219 | 456Y263 | 12.3 | 15.6 | 3 | 9 - view » |
| 400Y231 | 480Y277 | 13 | 15.6 | 3 | 9 - view » |
| 416Y240 | 499Y288 | 13.5 | 15.6 | 3 | 9 - view » |
| Buck Voltage (Reduce) - THREE PHASE | |||||
| Input Volts | Output Volts | kVA | Amps | Qty Required | Connection Diagram |
| 208 | 173 | 5.62 | 18.8 | 2 | 5 - view » |
| 240 | 200 | 6.5 | 18.8 | 2 | 5 - view » |
| 250 | 208 | 6.76 | 18.8 | 2 | 5 - view » |
| 380 | 362 | 21.6 | 34.4 | 2 | 6 - view » |
| 418 | 380 | 11.3 | 17.2 | 2 | 7 - view » |
| 440 | 400 | 11.9 | 17.2 | 2 | 7 - view » |
| 440 | 419 | 25 | 34.4 | 2 | 8 - view » |
| 480 | 436 | 13 | 17.2 | 2 | 7 - view » |
| 480 | 457 | 27.2 | 34.4 | 2 | 8 - view » |
| 528 | 480 | 14.3 | 17.2 | 2 | 7 - view » |
| 504 | 480 | 27.3 | 32.8 | 2 | 8 - view » |
| 416Y240 | 346Y200 | 11.3 | 18.8 | 3 | 9 - view » |
| 456Y263 | 379Y219 | 12.3 | 18.8 | 3 | 9 - view » |
| 480Y277 | 400Y231 | 13 | 18.8 | 3 | 9 - view » |
| 499Y288 | 416Y240 | 13.5 | 18.8 | 3 | 9 - view » |
| NOTE: Y configured units must have Y supply for proper operation. | |||||

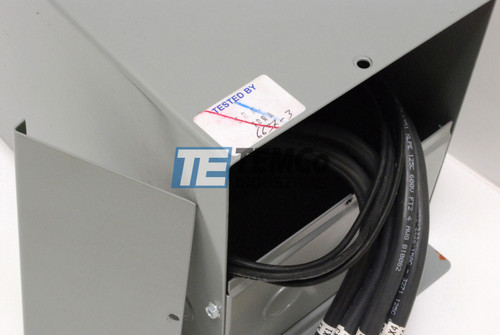

- Temperature Rise:
- 115
- Insulation System:
- 180
- Enclosure Rating:
- NEMA 3R
- Input Voltage:
- 240x480
- Output Voltage:
- 24/48
- Enclosure Material:
- Steel
- UL Listed:
- Yes
- CSA Approved:
- Yes
- Transformer Type:
- Buck Boost
- Phase:
- Single
- Kva:
- 0.75
- Winding Material:
- Copper
- Primary Configuration:
- Two Winding
- Secondary Configuration:
- Two Winding
- Reverse Connectable:
- Yes
- Electrostatically Shielded:
- No
- Construction Style:
- Enclosed - Encapsulated Core & Coil
- Connection Type:
- Wire leads
- Frequency Hz:
- 60
- K Rating:
- 1
- Mounting Type:
- Wall
- Manufacturer Part Number:
- K2XGF24-0.75
12 Years
