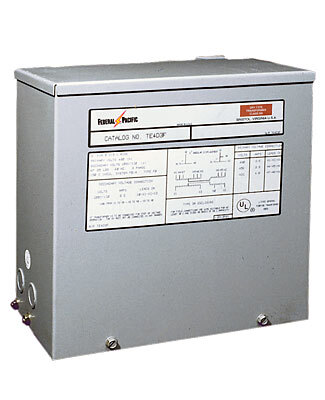

This Federal Pacific dry-type transformer is a totally enclosed, compound filled transformer. The core and coil assembly is embedded in a polyester resin compound which provides a solid insulation. The embedding compound has an extremely high heat transfer rate which permits a design of minimum size and weight. The compound-filled assembly is completely encased in a sturdy steel housing and cannot be damaged by dust, moisture, or adverse atmospheric conditions.
Features
- A large wiring compartment with knockouts permits fast wiring connections. Compartment temperatures can attain temperatures reaching 90°C; therefore 90°C cable should be used.
- All units are supplied with flexible cable leads marked with easy identification, and are supplied with wall-mounting brackets to reduce installation time.
- Intentionally designed for a low enclosure temperature rise, no UL-506 special markings are needed to indicate clearance between the enclosure and adjacent surfaces.
- Made in a temperature class based on a 25°C ambient, 115°C rise, 180°C insulation system.
- Sound level problems are negligible because the core and coils are rigidly encased in the polyester resin which is mechanically strong and acts as sound deadening material. Average sound levels are consistently below NEMA standards.
- Bil Rating Kv:
- NA
- Temperature Rise:
- 115
- Insulation System:
- 180
- Manufacturer:
- Federal Pacific
- Enclosure Rating:
- NEMA 3R
- Input Voltage:
- 480
- Output Voltage:
- 208Y/120
- Enclorse Type:
- Steel
- UL Listed:
- YES
- CSA Approved:
- YES
- Transformer Type:
- Isolation
- Phase:
- Three
- Kva:
- 15
- Winding Material:
- Aluminum
- Primary Configuration:
- Scott T
- Secondary Configuration:
- Scott T
- Reverse Connectable:
- YES
- Electrostatically Shielded:
- YES
- Construction Type:
- Enclosed - Encapsulated Core & Coil
- Cooling:
- Air/Dry
- Connection Type:
- Wire leads
- Frequency Hz:
- 60
- k Rating:
- 1
- Mounting Type:
- Wall
- Sound Level db:
- NA
- Agency Approvals:
- NA
- Manufacturer Part Number:
- N48SF2Y-15
