P1XGF21-1.5 FT0415 120x240 Pri, 120/240 Sec - 1.5 kVA - 60 Hz - 1 Ph NEMA 3R Copper Encapsulated

Standard Price: $464.90
TEMCo Direct: $371.10
( saved $93.80 )
No reviews yet Write a Review
SKU:
FT0415
UPC:
708281054520
Availability:
4 to 5 weeks
Weight:
0.00 LBS
Width:
7.75 (in)
Height:
13.25 (in)
Depth:
6.25 (in)
Shipping:
$32.84 (Fixed Shipping Cost)

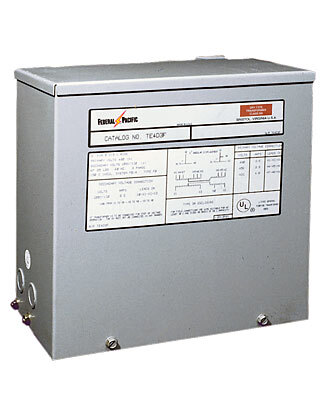

This Federal Pacific dry-type transformer is a totally enclosed, compound filled transformer. The core and coil assembly is embedded in a polyester resin compound which provides a solid insulation. The embedding compound has an extremely high heat transfer rate which permits a design of minimum size and weight. The compound-filled assembly is completely encased in a sturdy steel housing and cannot be damaged by dust, moisture, or adverse atmospheric conditions.


Features

  • A large wiring compartment with knockouts permits fast wiring connections. Compartment temperatures can attain temperatures reaching 90°C; therefore 90°C cable should be used.
  • All units are supplied with flexible cable leads marked with easy identification, and are supplied with wall-mounting brackets to reduce installation time.
  • Intentionally designed for a low enclosure temperature rise, no UL-506 special markings are needed to indicate clearance between the enclosure and adjacent surfaces.
  • Made in a temperature class based on a 25°C ambient, 115°C rise, 180°C insulation system.
  • Sound level problems are negligible because the core and coils are rigidly encased in the polyester resin which is mechanically strong and acts as sound deadening material. Average sound levels are consistently below NEMA standards.
Bil Rating Kv:
NA
Temperature Rise:
115
Insulation System:
180
Manufacturer:
Federal Pacific
Enclosure Rating:
NEMA 3R
Input Voltage:
120x240
Output Voltage:
120/240
Enclorse Type:
Steel
UL Listed:
YES
CSA Approved:
YES
Transformer Type:
Isolation
Phase:
Single
Kva:
1.5
Winding Material:
Copper
Primary Configuration:
Two Winding
Secondary Configuration:
Two Winding
Reverse Connectable:
YES
Electrostatically Shielded:
NO
Construction Type:
Enclosed - Encapsulated Core & Coil
Cooling:
Air/Dry
Connection Type:
Wire leads
Frequency Hz:
60
k Rating:
1
Mounting Type:
Wall
Sound Level db:
NA
Agency Approvals:
NA
Manufacturer Part Number:
P1XGF21-1.5
12 Years
