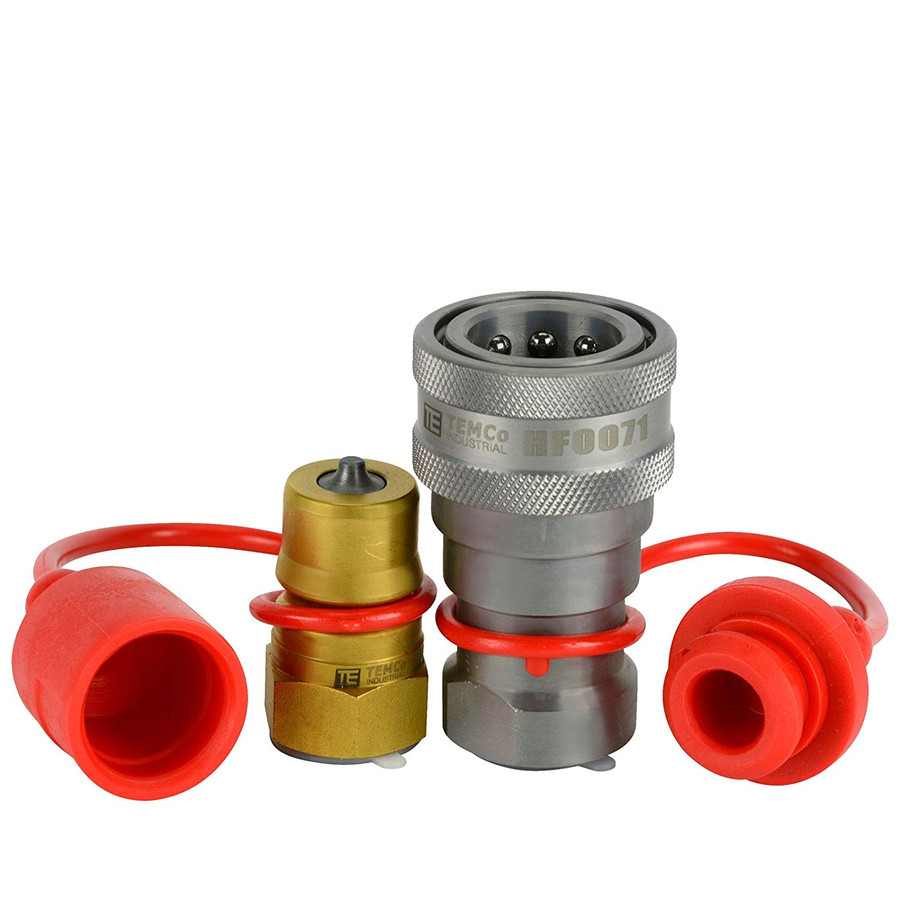

(HF0070 + HF0071) 1/2" Female NPT Thread 1/2" Body Pair Hydraulic Coupler ISO 7241B Poppet ValveQuick Connect

Standard Price: $24.99
TEMCo Direct: $22.49
( saved $2.50 )
No reviews yet Write a Review
SKU:
HF0072 (HF0070 + HF0071)
Availability:
Usually ships within 24 hours of order.
Weight:
0.00 LBS
Shipping:
Free Shipping

We've taken the time to coat the male poppet end with Titanium Nitride (Ti-Ni). Persistent coupling and decoupling along with inevitable particulates getting between the couplers leads to scratches and abrasions. These inconsistencies will eventually lead to a poor seal, resulting in leaks and loss of pressure. Ti-Ni coatings are usually used on drill bits and high speed steel to solve the problem of abrasion, so we decided to coat the business end of our male couplers with it. Also, we think the gold looks pretty slick.

Our couplers are machined out of carbon steel and plated with Zinc Nickel (Zn-Ni), which offers corrosion resistance, as well as an extra layer against normal wear and tear. Each coupler is pressure tested with hydraulic oil right off the factory line.

So, whether you're buying a replacement or making an upgrade to your skidsteer or agricultural equipment, TEMCo's hydraulic flat face couplers are designed to withstand your roughest working environment.


Safety Feature

Rotate the knurled collar on the female coupler so that the ball and indent in the collar are misaligned. Doing so will prevent the collar from being pulled back, which disengages and releases the female coupler from the male coupler. This feature ensures a safe working environment. To disengage the coupler, simply rotate the collar into alignment and pull the collar back away from the opposing male coupler.

Features

  • Carbon Steel construction, Zinc Nickel coating, and Titanium Nitride Male Poppets.
  • Titanium Nitride, often used for high speed steel drill bits, provides a longer wear life and proper seal after persistent usage.
  • A removable cap is attached to the coupler body, further preventing contaminant ingress.
Coupler Compatibility:
Tractors and Ag Equipment Fits Pioneer Parker Format
Coating:
Zinc Nickel
Body Material:
Carbon Steel
Poppett Coating:
Titanium Nitride
Rated Flow:
19.81 Gallons per Minute (GPM)
Polyurathane Seal Temp range:
-13°F to 193°F
NBR Seal Temp Range:
-4°F to 176°F
PTFE Seal Temp Range:
-148°F to 262°F
Rated Pressure:
5076.32 PSI
Cap Inculded:
Yes
Hydraulic Coupler ISO number:
7241B
Hydraulic Coupler Thread:
1/2 inch NPT
Hydraulic Coupler Valve:
Poppet
Hyrdaulic Coupler Connection:
Pair
