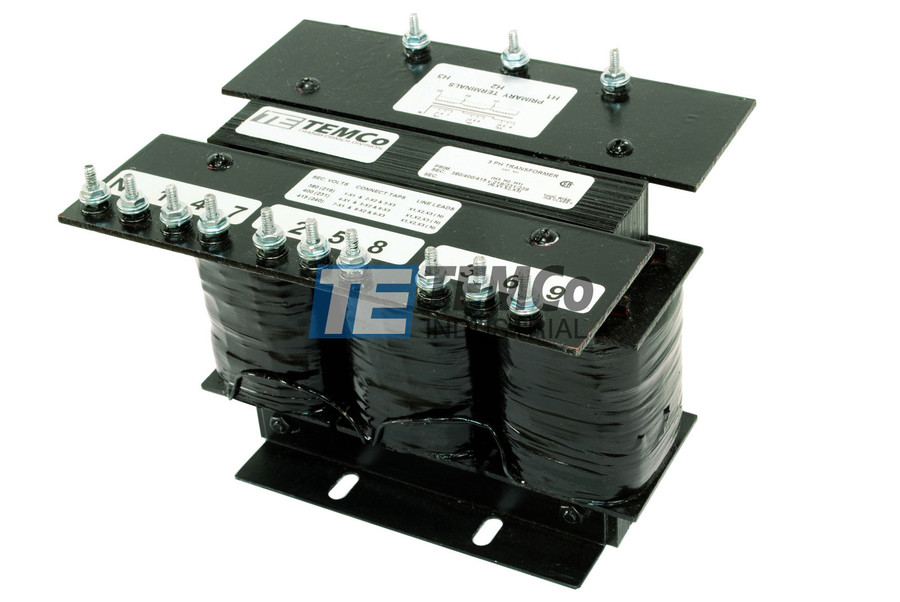

TEMCo Control Transformer T01019

TEMCo Direct: $1,267.50
No reviews yet Write a Review
SKU:
T01019
Availability:
Build to order in 12 to 16 weeks
Weight:
23.00 LBS
Width:
9.00 (in)
Height:
6.75 (in)
Depth:
3.90 (in)
Shipping:
$76.19 (Fixed Shipping Cost)

Features

  • CSA Approved
  • UL Listed
  • Copper windings
  • 1.5 to 2 week build time
  • Built with heat-proof insulation for compact size and long life.
  • Soldily fixed terminals with standard combination slotted Robertson head screw connections facilitate wiring.
  • Unique bobbin-wound coils for greater efficiency, superior heat evacuation, and compact structure.
  • .

TEMCo's 3 Phase Control Transformers are copper wound and built with heat-proof insulation for compact size and long life. Wiring is made easy by the solidly fixed terminals with standard combination slotted Robertson head screw connections. Bobbin-wound coils provide better efficiency, great heat evacuation, and compact structure. These units are built to last, guaranteed, backed with a 10 Year Warranty. Looking for a different specification? Check out our link to our 3 phase control transformer selection guide on the right of this page. We carry thousands of models in all kinds of configurations.


Please call us for additional options:

  • NEMA 4/4X
  • Encapsulation
  • Other voltages/multiple taps
  • Electrostatic shield

Output Amps
480 V 0.9
TEMCo 3 Phase Control Transformer selection guides
Bil Rating Kv:
4
Temperature Rise:
100
Insulation System:
155
Manufacturer:
TEMCo
Enclosure Rating:
Open
Input Voltage:
208
Output Voltage:
480
Enclosure Material:
N/A
UL Listed:
NO
CSA Approved:
YES
Transformer Type:
Control
Phase:
Three
Kva:
0.75
Winding Material:
Copper
Primary Configuration:
Delta
Secondary Configuration:
Delta
Reverse Connectable:
YES
Electrostatically Shielded:
NO
Construction Type:
Open (Core & Coil)
Cooling:
Air/Dry
Connection Type:
Lugs/Bolt down Terminals
Frequency Hz:
50/60
K Rating:
1
Mounting Type:
Base/panel
Sound Level db:
Less than 40
Agency Approvals:
NA
Manufacturer Part Number:
T01019
10 Years
