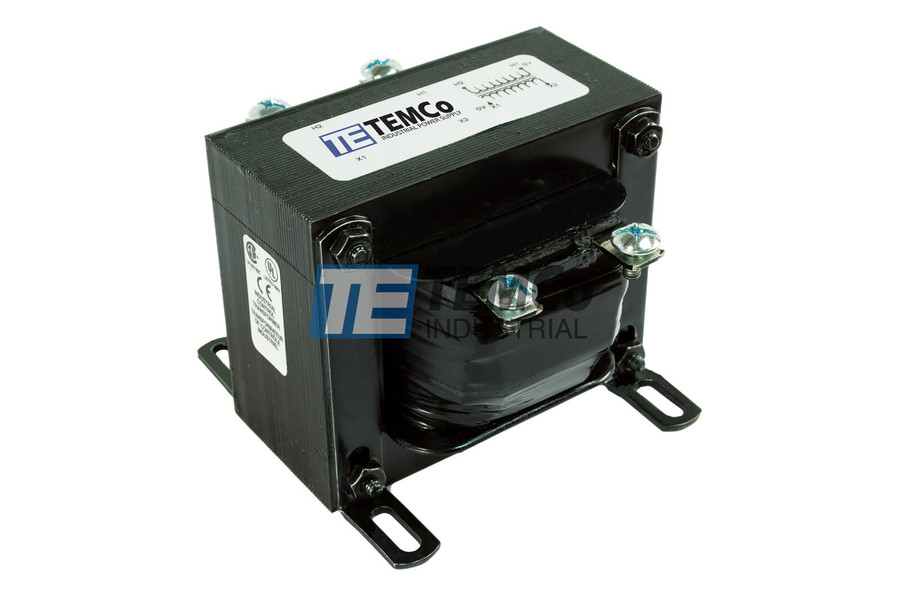

TEMCo Control Transformer TT0006

TEMCo Direct: $315.90
No reviews yet Write a Review
SKU:
TT0006
Availability:
Build to order in 12 to 16 weeks
Weight:
7.50 LBS
Width:
4.15 (in)
Height:
3.75 (in)
Depth:
4.50 (in)
Shipping:
$54.88 (Fixed Shipping Cost)

TEMCo Industrial Control Transformers are used to convert all standard international voltages. Built to last, guaranteed, with a decade long warranty.

Our industrial control transformers change supply voltages for the operation of components such as contactors, solenoids, relays, and timers. They accommodate momentary current inrush produced when electromagnetic components are energized without compromising secondary voltage stability. Maximum Safety is assured through the secondary control circuit which is isolated from the primary line circuit.

Voltage regulation of TEMCo Industrial Control Transformers exceeds standards recommended by the National Electrical Manufacturers Association. Secondary circuit voltage drop between no-load and momentary overload remains exceptionally low, maintaining excellent voltage regulation.

TEMCo has the capability to wind any custom control transformer with no penalty for small quantities. Please call us with your requirements for a Fast Turnaround Quote.


Features

  • Built to order FAST in 1 week.
  • 10 Year Warranty - Guaranteed to last.
  • Copper Windings - Standard on all units.
  • 130°C Insulation class. 80°C temperature rise (25-1000 VA models).
  • 155°C Insulation class. 100°C temperature rise (1500-7500 VA models).
  • Easy Wiring - Solid terminals with combination screw connections.
  • Clear Terminals Marking - Identified with additive polarity markings.
  • Versatile - Models with multi-voltage primary and secondary increase applications possible.
  • Silicon Steel Lamination - Minimize core losses and increase efficiency.
  • Excellent Regulation - Designs incorporate precision wound coil layers and exceed NEMA requirements.
  • High Efficiency and Heat Dissipation - Every coil is precision bobbin-wound.
  • Versatile Mounting - Vertically or horizontally.
  • CSA Certified & UL Listed
  • CE verified up to and including 5000 VA.

TEMCo Control Transformer Selection Guide
Bil Rating Kv:
NA
Temperature Rise:
80
Insulation System:
130
Manufacturer:
TEMCo
Enclosure Rating:
NA
Input Voltage:
110
Output Voltage:
240
Enclosure Material:
N/A
UL Listed:
YES
CSA Approved:
YES
Transformer Type:
Control
Phase:
Single
Kva:
0.25
Winding Material:
Copper
Primary Configuration:
One Winding
Secondary Configuration:
One Winding
Reverse Connectable:
NO
Electrostatically Shielded:
NO
Construction Type:
Open (Core & Coil)
Cooling:
Air/Dry
Connection Type:
Screw terminals
Frequency Hz:
60
K Rating:
1
Mounting Type:
Base/panel
Sound Level db:
Less than 40 db
Agency Approvals:
CE verified
Manufacturer Part Number:
TT0006
10 Years
