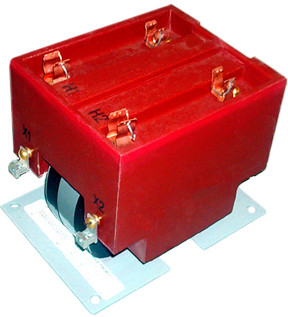

TEMCo Medium Voltage Control Transformer T46706

Standard Price: $9,118.20
TEMCo Direct: $8,141.25
( saved $976.95 )
No reviews yet Write a Review
SKU:
T46706
Availability:
Build to order in 6 to 8 weeks
Weight:
85.00 LBS
Shipping:
$361.69 (Fixed Shipping Cost)

TEMCo Control Power Transformers (CPT) are used to supply power to control circuit in electrical panels.

Features

  • Open construction with encapsulated coil
  • 60 kV BIL
  • CSA C22.2 #47 M90, 66-1988, and C9-02
  • UL ANSI C57.13.2
  • Fuse kits available as add-on (contact us for more info)

Medium Voltage Control Transformer Selection Guide
Bil Rating Kv:
60
Temperature Rise:
115
Insulation System:
185
Manufacturer:
TEMCo
Enclosure Rating:
NA
Input Voltage:
4160
Output Voltage:
600
Enclosure Material:
N/A
UL Listed:
YES
CSA Approved:
YES
Transformer Type:
Control (Encapsulated)
Phase:
Single
Kva:
3
Winding Material:
Copper
Primary Configuration:
One Winding
Secondary Configuration:
One Winding
Reverse Connectable:
YES
Electrostatically Shielded:
NO
Construction Type:
Open (Encapsulated Core & Coil)
Cooling:
Air/Dry
Connection Type:
Screw terminals
Frequency Hz:
60
K Rating:
1
Mounting Type:
Base/panel
Sound Level db:
NA
Agency Approvals:
UL ANSI C57.13.2
Manufacturer Part Number:
T46706
10 Years
