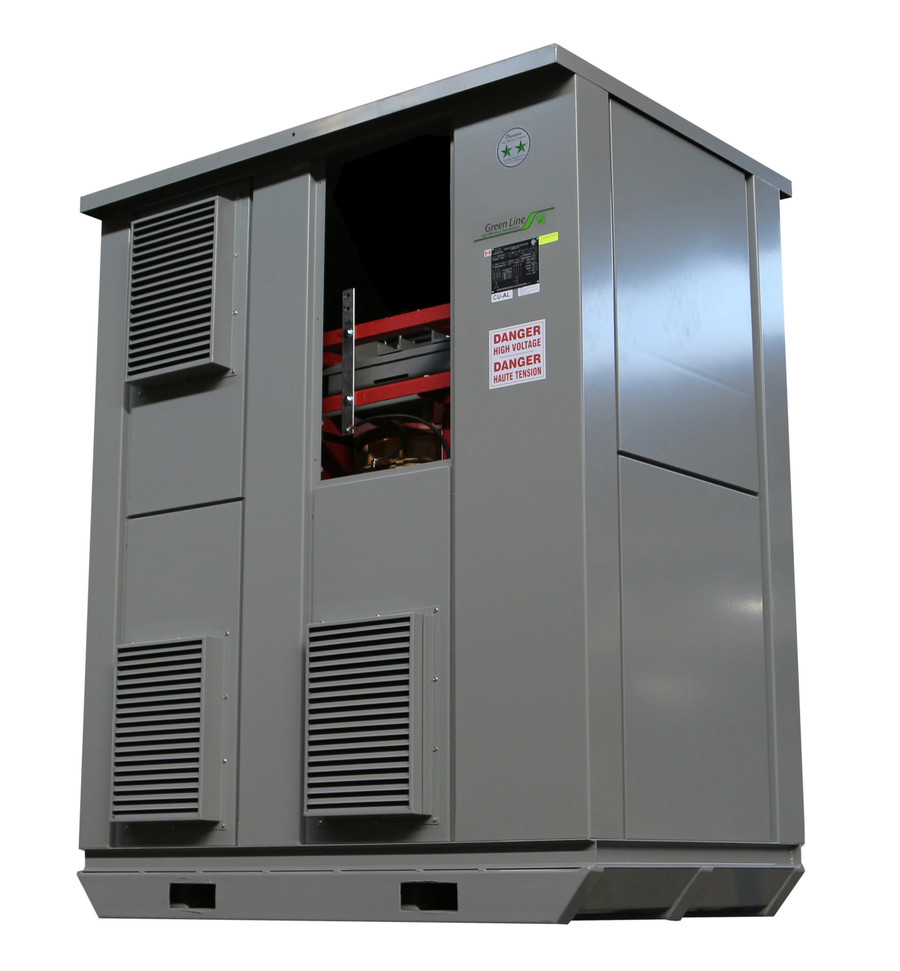

TEMCo Medium Voltage Isolation Transformers are designed for stepping down incoming higher voltage power to utilize voltages for commercial, institutional, or industrial applications. The NEMA 3R ventilated enclosure makes it suitable for indoor use as well as outdoor protection against rain and sleet. Our transformers are built to last, guaranteed. That's why we back these with a decade long warranty. For copper or aluminum windings in other sizes, please refer to the "Related Products" section below, or view the TEMCo Medium Voltage Isolation Transformer Selection Guide for the part number (link to the right).
Features
- 60 Hz
- NEMA 3R
- 150°C rise
- UL Listed and CSA Certified
- 10 Year Warranty
- Bil Rating Kv:
- 45
- Temperature Rise:
- 150
- Insulation System:
- 220
- Manufacturer:
- TEMCo
- Enclosure Rating:
- NEMA 3R
- Input Voltage:
- 7200
- Output Voltage:
- 240
- Enclorse Type:
- Steel
- UL Listed:
- YES
- CSA Approved:
- YES
- Transformer Type:
- Isolation
- Phase:
- Three
- Kva:
- 750
- Winding Material:
- Aluminum
- Primary Configuration:
- Delta
- Secondary Configuration:
- Delta
- Reverse Connectable:
- YES
- Electrostatically Shielded:
- NO
- Construction Type:
- Enclosed (Ventilated Core & Coil)
- Cooling:
- Air/Dry
- Connection Type:
- Lugs/Bolt down Terminals
- Frequency Hz:
- 60
- k Rating:
- 1
- Mounting Type:
- Floor
- Sound Level db:
- NA
- Agency Approvals:
- CAN/CSA-C802.2-00
- Manufacturer Part Number:
- T38333
10 Years
