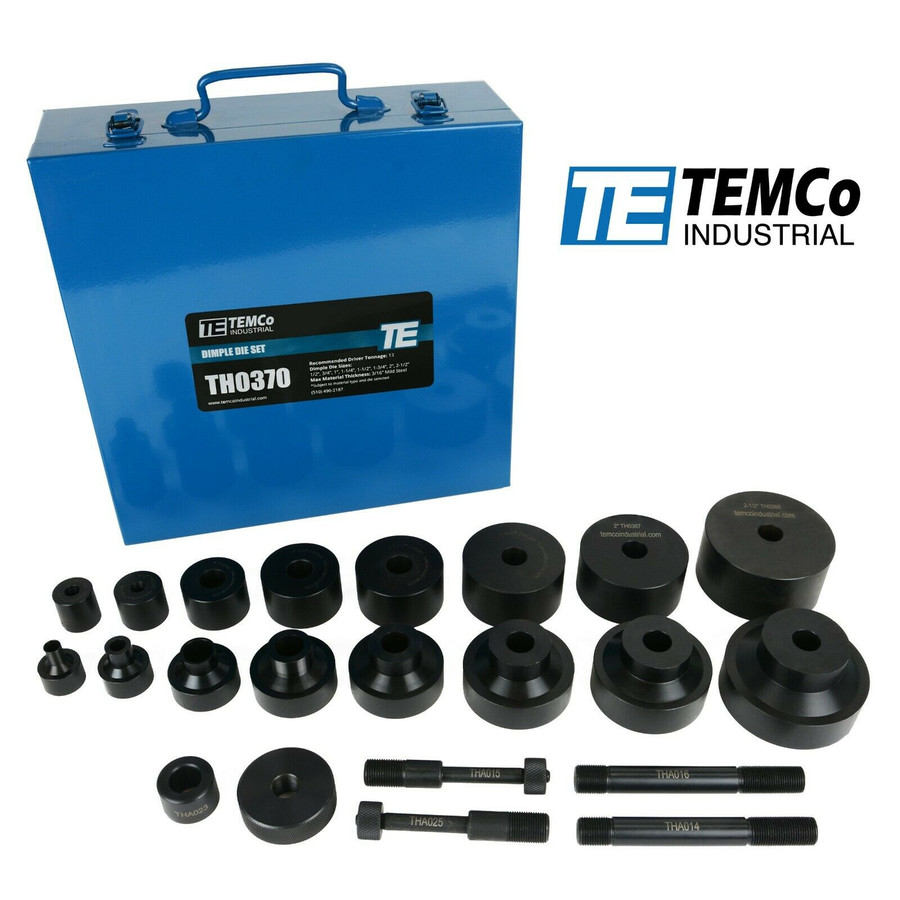

This dimple die set works with a hydraulic driver and cylinder tool most commonly used with hydraulic knockout sets like our TEMCo THA043 and TH0372. This allows the user to easily work on larger work pieces without the hassle of wrestling it under a hydraulic press.
If you don't have a TEMCo hydraulic driver, we provide draw studs and spacers that allow you to use the dies on other brands like Greenlee and various import brands.
- Punching Dies Included:
- Punchable Materials:
- Steel, Stainless Steel, Brass, Copper, Aluminum (soft alloys only, not for use with 7075 or other super alloys), Fiberglass, Plastic and more.
- Construction Material:
- Hardened Tool Steel, Black Oxide Finish
- Punching Thickness Capacity:
- 3/16 inch Mild Steel
- Required Punching Force:
- 13 US Tons
- Fits Draw Stud Size:
- Draw Studs Included (THA014, THA015, THA016, THA025).
- Dimper Dies Sizes Included:
- Dimple Die Set: 1/2 inch 3/4 inch 1 inch 1-1/4 inch 1-1/2 inch 1-3/4 inch 2 inch 2-1/2 inch
