This punch set is designed for punching holes in panels for various cam locks, outlet receptacles, and conduits on sheet metal, fiberglass, plastic, and more. The unique design uses an indexed mandrell for male-to-female die rotational alignment ensuring high quality punching repeatability.
This set requires the use of a hydraulic punch ram with a capacity of at least 9 tons.
We recommend our TH0004 punch driver.
- Punching Dies Included:

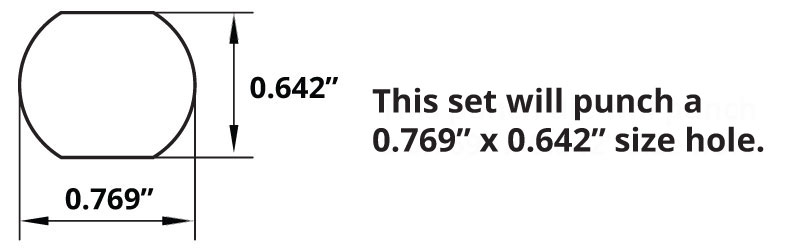

- 0.769 inch x 0.642 inch
- Punchable Materials:
- Steel, Stainless Steel, Brass, Copper, Aluminum (soft alloys only, not for use with 7075 or other super alloys), Fiberglass, Plastic and more.
- Construction Material:
- Hardened Tool Steel
- Punching Thickness Capacity:
- 1/8 inch (11 ga) Steel, 1/16 inch Stainless Steel
- Required Punching Force:
- < 9 US Tons
- Fits Draw Stud Size:
- Required Hydraulic Thread Size:
- Fits TEMCo Industrial, Greenlee and other English punch sets (3/4-16 inch) OR Fits other import metric punch sets (20 x 1.5mm). Draw studs and spacers are included for all of the above specifications.
- Draw Stud Included:
- THA020 - Metric, THA021 - English
- Spacer Inclued:
- Punch Type:
- Double D Punch Set
