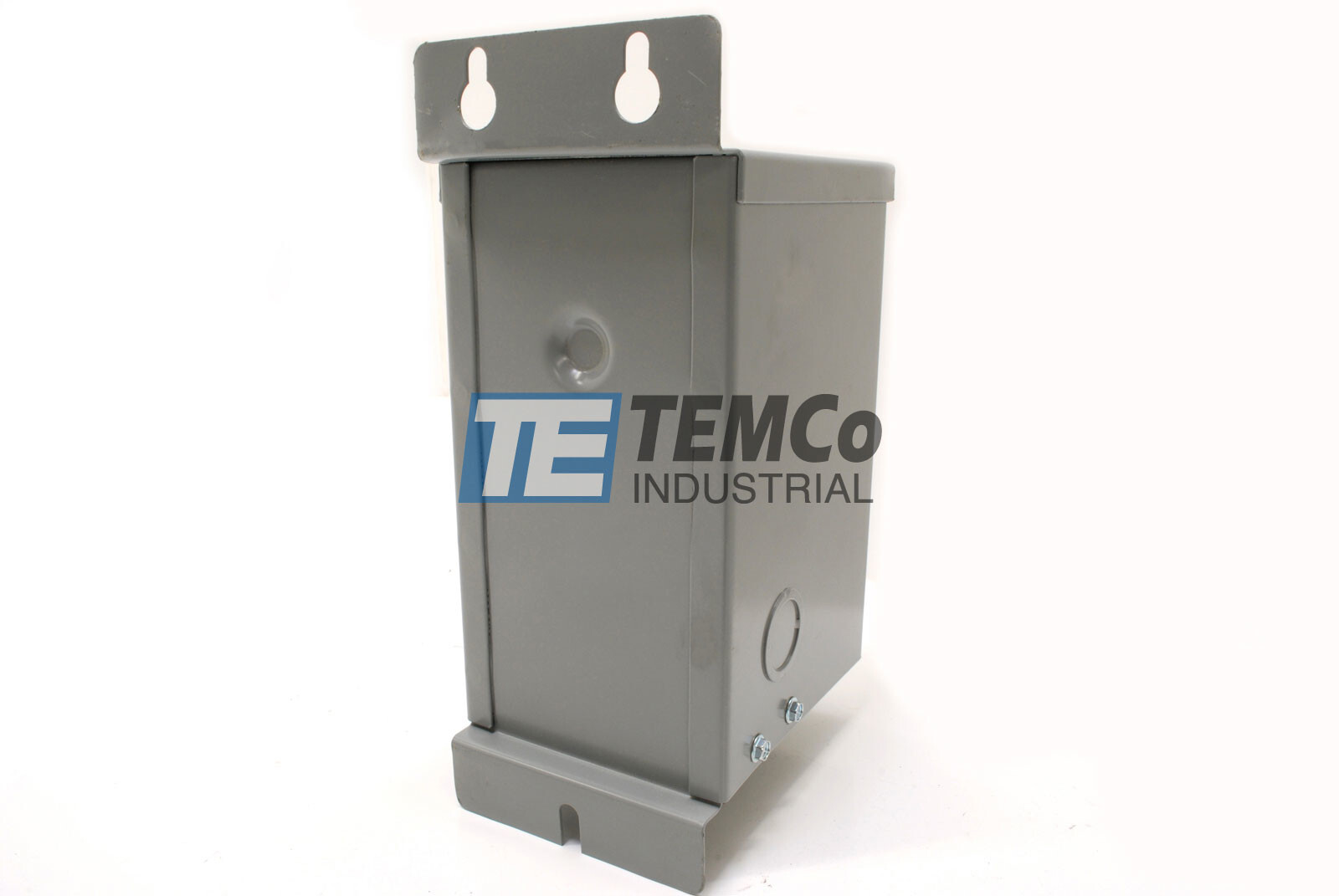

K2XGF24-0.1 Buck Boost Transformer FT0284

Standard Price: $87.00
TEMCo Direct: $70.00
( saved $17.00 )
No reviews yet Write a Review
SKU:
FT0284
UPC:
7.08281E+11
Availability:
Usually ships within 24 hours
Weight:
10.00 LBS
Shipping:
$12.67 (Fixed Shipping Cost)
Equivalent Buck-Boost Transformer Models
Manufacturer Same Size Next Larger Next Smaller
Acme AT1493 AT1494 AT1492
Federal FT0284 FT0285 FT0283
GE GT1119 GT1120 GT1117

This versatile transformer will produce any of the below voltage combinations. Verify that your application falls under the capactiy given in amps or kVA for the voltage combination selected. If you would like to increase or reduce the capacity beyond what this model offers, see the Equivalent Models table above.


Boost Voltage (Increase) - SINGLE PHASE
Input Volts Output Volts kVA Amps Connection Diagram
200 220 0.92 4.17 1 - view »
208 229 0.95 4.17 1 - view »
220 242 1.01 4.17 1 - view »
230 276 0.58 2.08 2 - view »
240 264 1.1 4.17 1 - view »
380 418 0.87 2.08 4 - view »
416 458 0.95 2.08 4 - view »
430 473 0.99 2.08 4 - view »
435 457 1.9 4.17 3 - view »
436 480 1 2.08 4 - view »
440 462 1.93 4.17 3 - view »
440 484 1.01 2.08 4 - view »
450 473 1.97 4.17 3 - view »
456 479 2 4.17 3 - view »
460 483 2.01 4.17 3 - view »
480 504 2.1 4.17 3 - view »
Buck Voltage (Reduce) - SINGLE PHASE
Input Volts Output Volts kVA Amps Connection Diagram
220 200 0.92 4.58 1 - view »
229 208 0.95 4.58 1 - view »
242 220 1.01 4.58 1 - view »
276 230 0.58 2.5 2 - view »
264 240 1.1 4.58 1 - view »
418 380 0.87 2.29 4 - view »
458 416 0.95 2.29 4 - view »
473 430 0.99 2.29 4 - view »
457 435 1.9 4.38 3 - view »
480 436 1 2.29 4 - view »
462 440 1.93 4.38 3 - view »
484 440 1.01 2.29 4 - view »
473 450 1.97 4.38 3 - view »
479 456 2 4.38 3 - view »
483 460 2.01 4.38 3 - view »
504 480 2.1 4.38 3 - view »


Boost Voltage (Increase) - THREE PHASE
Input Volts Output Volts kVA Amps Qty Required Connection Diagram
173 208 0.75 2.08 2 5 - view »
200 240 0.87 2.08 2 5 - view »
208 250 0.91 2.08 2 5 - view »
362 380 2.88 4.17 2 6 - view »
380 418 1.51 2.08 2 7 - view »
400 440 1.59 2.08 2 7 - view »
419 440 3.33 4.17 2 8 - view »
436 480 1.74 2.08 2 7 - view »
457 480 3.63 4.17 2 8 - view »
480 528 1.91 2.08 2 7 - view »
480 504 3.64 4.17 2 8 - view »
346Y200 416Y240 1.5 2.08 3 9 - view »
379Y219 456Y263 1.64 2.08 3 9 - view »
400Y231 480Y277 1.73 2.08 3 9 - view »
416Y240 499Y288 1.8 2.08 3 9 - view »
Buck Voltage (Reduce) - THREE PHASE
Input Volts Output Volts kVA Amps Qty Required Connection Diagram
208 173 0.75 2.5 2 5 - view »
240 200 0.87 2.5 2 5 - view »
250 208 0.91 2.5 2 5 - view »
380 362 2.88 4.58 2 6 - view »
418 380 1.51 2.29 2 7 - view »
440 400 1.59 2.29 2 7 - view »
440 419 3.33 4.58 2 8 - view »
480 436 1.74 2.29 2 7 - view »
480 457 3.63 4.58 2 8 - view »
528 480 1.91 2.29 2 7 - view »
504 480 3.64 4.38 2 8 - view »
416Y240 346Y200 1.5 2.5 3 9 - view »
456Y263 379Y219 1.64 2.5 3 9 - view »
480Y277 400Y231 1.73 2.5 3 9 - view »
499Y288 416Y240 1.8 2.5 3 9 - view »
NOTE: Y configured units must have Y supply for proper operation.
Temperature Rise:
115
Insulation System:
180
Enclosure Rating:
NEMA 3R
Input Voltage:
240x480
Output Voltage:
24/48
Enclosure Material:
Steel
UL Listed:
Yes
CSA Approved:
Yes
Transformer Type:
Buck Boost
Phase:
Single
Kva:
0.1
Winding Material:
Copper
Primary Configuration:
Two Winding
Secondary Configuration:
Two Winding
Reverse Connectable:
Yes
Electrostatically Shielded:
No
Construction Style:
Enclosed - Encapsulated Core & Coil
Connection Type:
Wire leads
Frequency Hz:
60
K Rating:
1
Mounting Type:
Wall
Manufacturer Part Number:
K2XGF24-0.1
