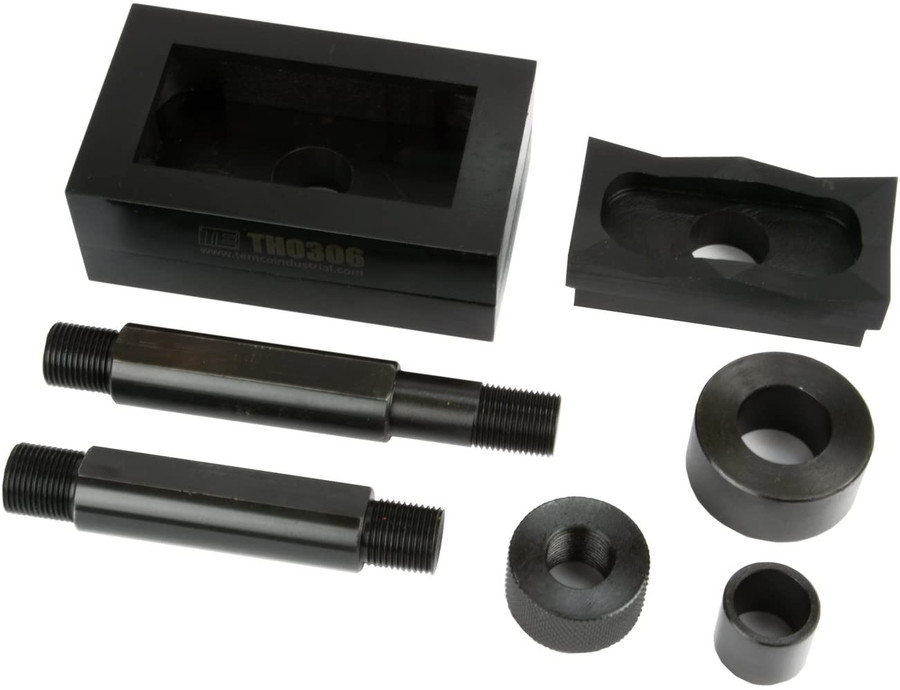

This punch set is designed for punching holes in panels for common fractional DIN sized meters, gauges and process controllers. The unique design uses an indexed mandrell for male-to-female die rotational alignment ensuring high quality punching repeatability.
Fits TEMCo Industrial, Greenlee and other English punch sets (3/4-16") OR Fits other import metric punch sets (20 x 1.5mm). Draw studs and spacers are included for all of the above specifications.
This set requires the use of a hydraulic punch ram with a capacity of at least 12 US Tons.
We recommend using this punch die with the TH0037 Punch Driver.
- Hardened Tool Steel Punch Dies are guaranteed to outlast generic models.
- Perfect for electricians who get it done or the casual DIYer.
- Produces perfect, uniform holes every time.
- 1/8 inch (11 ga) Steel Punching Capacity, 1/16 inch Stainless Steel.
- Also punches: Aluminum, Fiberglass, Plastic, and more.
- Quick, effortless and simple to operate.
- In stock, ready to ship.
- 5 Year Warranty from a well-known American name. NON-GENERIC.
- Punching Dies Included:
- 92mm x 46 mm (1/8 DIN)
- Punchable Materials:
- Steel, Stainless Steel, Brass, Copper, Aluminum (soft alloys only, not for use with 7075 or other super alloys), Fiberglass, Plastic and more.
- Construction Material:
- Hardened Tool Steel, Black Oxide Finish
- Punching Thickness Capacity:
- 1/8 inch (11 ga) Steel, 1/16 inch Stainless Steel
- Required Punching Force:
- 12 US Tons
- Fits Draw Stud Size:
