TEMCo TH0368 Dimple Die for 2-1/2” Actual Hole Size

This dimple die set creates flared holes. Cut out holes inherently provide reduced weight of the work piece, and these dimple dies create rigidity by flaring the holes.

TEMCo TH0386 Dimple Die for 1-1/2” Conduit Hole Size – 1.93” Actual Hole Size

Dimple Die for 1-1/2” Conduit Hole Size – 1.93” Actual Hole Size Rated For 3/16" Mild Steel. Recommended Minimum Forming Tonnage: 13. This dimple die set creates flared holes. Cut out holes inherently provide reduced weight of the...

TEMCO THA107 1/2" Slug Splitting Conduit Punch - Die for Hydraulic Knock Out Driver

Slug Splitting Conduit Punch for Fitting Size: 1/2" Required Punching Force: 9 US TonsActual Hole Size: 0.86"Fits Draw Stud Size: TEMCo THA012, THA013, THA015 or any draw stud with a diameter of 0.430" (10.90mm)  Punching...

TEMCo THA108 3/4" Slug Splitting Conduit Punch - Die for Hydraulic Knock Out Driver

Slug Splitting Conduit Punch for Fitting Size: 3/4" Required Punching Force: 9 US TonsActual Hole Size: 1.05"Fits Draw Stud Size: 3/4" -16 (TEMCo THA0001 and THA100 draw studs)  Punching Thickness Capacity: 1/8" (11 ga) Steel, 1/16"...

TEMCo THA109 1" Slug Splitting Conduit Punch - Die for Hydraulic Knock Out Driver

Slug Splitting Conduit Punch for Fitting Size: 1" Required Punching Force: 9 US TonsActual Hole Size: 1.33"Fits Draw Stud Size: 3/4" -16 (TEMCo THA0001 and THA100 draw studs)  Punching Thickness Capacity: 1/8" (11 ga) Steel, 1/16"...

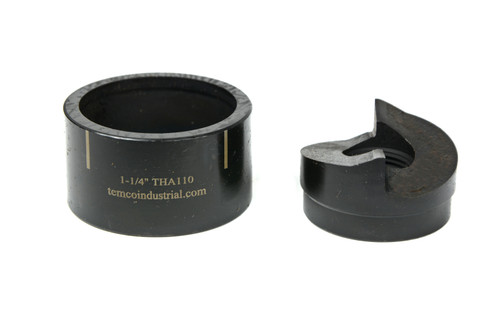

TEMCo THA110 1-1/4" Slug Splitting Conduit Punch/Die for Hydraulic Knock Out Driver

Slug Splitting Conduit Punch for Fitting Size: 1-1/4" Required Punching Force: 9 US TonsActual Hole Size: 1.69"Fits Draw Stud Size: 3/4" -16 (TEMCo THA0001 and THA100 draw studs)  Punching Thickness Capacity: 1/8" (11 ga) Steel, 1/16"...

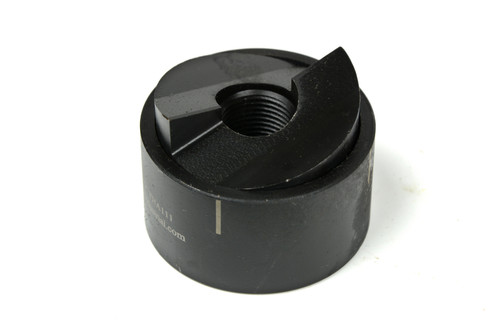

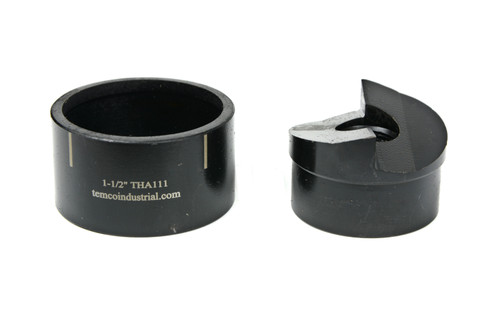

TEMCo THA111 1-1/2" Slug Splitting Conduit Punch/Die for Hydraulic Knock Out Driver

Slug Splitting Conduit Punch for Fitting Size: 1-1/2" Required Punching Force: 9 US TonsActual Hole Size: 1.93"Fits Draw Stud Size: 3/4" -16 (TEMCo THA0001 and THA100 draw studs)  Punching Thickness Capacity: 1/8" (11 ga) Steel, 1/16"...

TEMCo THA112 2" Slug Splitting Conduit Punch - Die for Hydraulic Knock Out Driver

Slug Splitting Conduit Punch for Fitting Size: 2" Required Punching Force: 9 US TonsActual Hole Size: 2.36"Fits Draw Stud Size: 3/4" -16 (TEMCo THA0001 and THA100 draw studs)  Punching Thickness Capacity: 1/8" (11 ga) Steel, 1/16"...

TEMCo THA113 2-1/2" Deep Draw Conduit Punch - Die for Hydraulic Knock Out Driver

Deep Draw Conduit Punch for Fitting Size: 2-1/2" Required Punching Force: 13 US TonsActual Hole Size: 3"Fits Draw Stud Size: 3/4" -16 (TEMCo THA0001 and THA100 draw studs)  Punching Thickness Capacity: 1/8" (11 ga) Steel, 1/16" Stainless Steel...

TEMCo THA114 3" Deep Draw Conduit Punch and Die for Hydraulic Knock Out Driver

Deep Draw Conduit Punch for Fitting Size: 3" Required Punching Force: 13 US TonsActual Hole Size: 3.5"Fits Draw Stud Size: 3/4" -16 (TEMCo THA0001 and THA100 draw studs)  Punching Thickness Capacity: 1/8" (11 ga) Steel, 1/16" Stainless Steel...

TEMCo THA115 3-1/2" Deep Draw Conduit Punch - Die for Hydraulic Knock Out Driver

Deep Draw Conduit Punch for Fitting Size: 3-1/2" Required Punching Force: 13 US TonsActual Hole Size: 3.93"Fits Draw Stud Size: 3/4" -16 (TEMCo THA0001 and THA100 draw studs)  Punching Thickness Capacity: 1/8" (11 ga) Steel, 1/16" Stainless...

TEMCo THA116 4" Deep Draw Conduit Punch and Die for Hydraulic Knock Out Driver

Deep Draw Conduit Punch for Fitting Size: 4" Required Punching Force: 13 US TonsActual Hole Size: 4.5"Fits Draw Stud Size: 3/4" -16 (TEMCo THA0001 and THA100 draw studs)  Punching Thickness Capacity: 1/8" (11 ga) Steel, 1/16" Stainless Steel...

TH0307 Square 92mm x 92mm 1/4 DIN Panel Meter Punch Dies 3.622" x 3.622"

Square DIN Punch Die Set for 92mm x 92 mm (1/4 DIN) Fits TEMCo Industrial, Greenlee and other English punch sets (3/4-16") OR Fits other import metric punch sets (20 x 1.5mm). Draw studs and spacers are included for all of the above specifications. ...

TH0382 Dimple Die for 1/2” Conduit Hole Size - 0.86” Actual Hole Size

Dimple Die for 1/2” Conduit Hole Size - 0.86” Actual Hole Size Rated For 3/16" Mild Steel. Recommended Minimum Forming Tonnage: 13. This dimple die set creates flared holes. Cut out holes inherently provide reduced weight of the work...

TH0383 Dimple Die for 3/4” Conduit Hole Size - 1.05” Actual Hole Size

Dimple Die for 3/4” Conduit Hole Size - 1.05” Actual Hole Size Rated For 3/16" Mild Steel. Recommended Minimum Forming Tonnage: 13. This dimple die set creates flared holes. Cut out holes inherently provide reduced weight of the work...

TH0384 Dimple Die for 1” Conduit Hole Size - 1.33” Actual Hole Size

Dimple Die for 1” Conduit Hole Size - 1.33” Actual Hole Size Rated For 3/16" Mild Steel. Recommended Minimum Forming Tonnage: 13. This dimple die set creates flared holes. Cut out holes inherently provide reduced weight of the work...

TH0385 Dimple Die for 1-1/4” Conduit Hole Size – 1.69” Actual Hole Size

Dimple Die for 1-1/4” Conduit Hole Size – 1.69” Actual Hole Size Rated For 3/16" Mild Steel. Recommended Minimum Forming Tonnage: 13. This dimple die set creates flared holes. Cut out holes inherently provide reduced weight of the...

TH0387 Dimple Die for 2” Conduit Hole Size – 2.36” Actual Hole Size

Dimple Die for 2” Conduit Hole Size – 2.36” Actual Hole Size Rated For 3/16" Mild Steel. Recommended Minimum Forming Tonnage: 13. This dimple die set creates flared holes. Cut out holes inherently provide reduced weight of the...

TH0388 Dimple Die Set Tool Kit 6pcs for Conduit Knockout Sizes: (1/2") 0.86", (3/4") 1.05", (1”) 1.33", (1-1/4") 1.69", (1-1/2") 1.93", (2") 2.36"

TH0390 – Manual Knockout Punch Driver Kit for ½ inch to 2 inch Electrical Conduit Hole Sizes (1/2"-2" Conduit Size)

Manual drive knockout punches, for use with ratchet, wrench, or electric driver. Conduit punch sizes: 1/2",3/4",1",1-1/4, 1-1/2", 2" Capacity: Mild steel plate through 10 gauge (3.5mm) Works to punch Mild steel, Brass, Copper, Aluminum (soft alloys...

TH0391-1/2" Conduit hole size Knockout punch unit with manual draw stud – (0.86" – Actual Hole Size)

TH0392-3/4" Conduit hole size Knockout punch unit with manual draw stud – (1.11" – Actual Hole Size)

TH0393-1" Conduit hole size Knockout punch unit with manual draw stud – (1.36" – Actual Hole Size)

TH0394-1 1/4" Conduit hole size Knockout punch unit & manual draw stud – (1.70" – Actual Hole Size)
